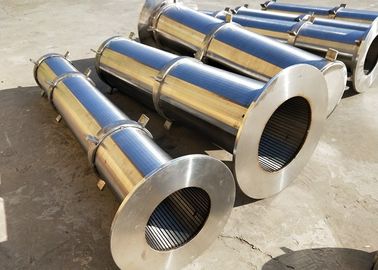

Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders

Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders
Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders

Large Image :  Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY-44
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes
Delivery Time: 7 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1500 pcs/month
Contact Now
Detailed Product Description
Features: Non-clogging Name: HengYuan Quality Wedge Wire Mesh
Material: Low Carbon Galvanized ,stainless Steel Length: 10-3000mm
Diameter: 29-1200mm Technique: Point Welding
Application: Filteration Package: Wooden Boxes
Highlight:

wedge wire screen cylinders

,

wedge wire mesh

Durable Wedge Wire Mesh, Non Clogging Wedge Wire Screen Cylinders
Product Specifications
Attribute Value
Name HengYuan Quality Wedge Wire Mesh
Material Low carbon galvanized, stainless steel
Length 10-3000mm
Diameter 29-1200mm
Technique Point welding
Features Non-clogging
Application Filtration
Package Wooden boxes
Product Description

HengYuan Quality Wedge Wire Mesh, Cylinder Screen Lopped Wire Screens

Material & Dimensions

Low carbon wire, stainless steel wire

Diameter: 29-1200mm (custom sizes available)

Slot size: 0.05-30mm (custom sizes available)

Length: 10-3000mm

End connection options: Male/female threaded coupling, welded rings, plain beveled ends, flange, closed end plate, same slot sieve plate.

Key Advantages
  • The wedge tapered opening becomes progressively wider increasing dewatering efficiency
  • Non-plugging design ensures smooth circulation
  • Slot size ranging from 0.05mm to 20mm
  • Durable and capable of carrying heavier loads without support structures
  • One piece construction
  • Wide range of materials available
  • Easy to clean, long service life, safe and reliable, low comprehensive cost
Standard Specifications
Outside Diameter (mm) Length (mm) Slot (mm) Styles of Connection
29,38,42,57,63,76,89,108,150,168,320,600,900,985 etc 1000,2000,3000 0.05,0.1,0.25,0.5,1.0 Welded rings, male/female threaded coupling, flange, closed up
Diameter: 29-1000mm | Length: 100-4000mm | Materials: Low carbon galvanized, stainless steel
Applications

Widely used in liquid filtration processes in the food, chemical, petrochemical, paper industries. Ideal for liquid, gas and solid separation, sizing, dewatering and sifting in oil wells, water wells, waste/process water treatment, quarry screening, mine sifting and other industrial screening applications.

Durable Wedge Wire Mesh , Non Clogging Wedge Wire Screen Cylinders 0

Tag:

wedge wire screen cylinders,

wedge wire mesh,

welded wedge wire screen
