Thermal Resistant Johnson Wedge Wire Screens , Stainless Steel Profile Wire Screen

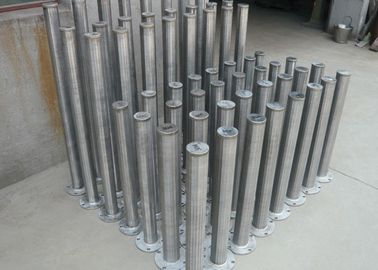

Large Image : Thermal Resistant Johnson Wedge Wire Screens , Stainless Steel Profile Wire Screen

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan
Certification:	ISO
Model Number:	HY-49

Payment & Shipping Terms:

Minimum Order Quantity:	i piece
Price:	Negotiated price
Packaging Details:	wooden boxes
Delivery Time:	7 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500 pcs/month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	0.2mm Slotted Wedge Wire Mesh
Material:	Low Carbon Steel,stainless Steel And So On	Length:	10-3000mm
Diameter:	29-1200mm	Technique:	Point Welding
Application:	Filteration	Package:	Wooden Boxes
Highlight:	wedge wire screen cylinders , welded wedge wire screen

Thermal Resistant Johnson Wedge Wire Screens, Stainless Steel Profile Wire Screen

Product Specifications

Attribute	Value
Name	0.2mm Slotted Wedge Wire Mesh
Material	Low carbon steel, stainless steel and more
Length	10-3000mm
Diameter	29-1200mm
Technique	Point welding
Features	Non-clogging
Application	Filtration
Package	Wooden boxes

Product Description

0.2mm Slotted Wedge Wire Mesh, Profile Wire Johnson Wire Screen

Key Advantages

Production process continuity: V-shaped profile wires create slots which enlarge inwardly, avoiding clogging and minimizing downtime.
Low maintenance costs: Separation at the screen surface which can be easily cleaned by scraping or back washing.
Maximum process output: Precise and continuous slot openings result in accurate separation without loss of media.
Low operational costs: Large open area with effective flow, high yield and low pressure drop (dP).
Long lifespan: Welded at each intersection creating a strong and durable screen.
Reduced installation costs: Supporting constructions eliminate costly support media and enable maximum flexibility in component design.
Chemical and thermal resistant: Available in various corrosion-resistant stainless steel materials and exotic alloys suitable for high temperatures and pressures.

Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

Technical Parameters

Outside Diameter (mm)	Length (mm)	Slot (mm)	Styles of Connection (mm)
29, 38, 42, 57, 63, 76, 89, 108, 150, 168, 320, 600, 900, 985 etc	1000, 2000, 3000 etc	0.05, 0.1, 0.25, 0.5, 1.0 etc	Welded rings, male/female threaded coupling, flange, closed up
Explanation: Diameter: 29-1000mm \| Length: 100-4000mm \| Materials: Low carbon galvanized, stainless steel
