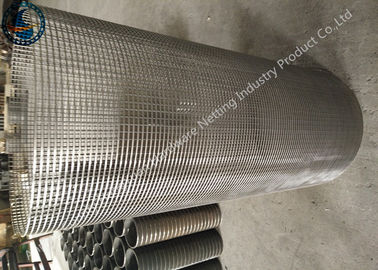

SS Wedge Wire Screen Pipe Non Clogging For Liquid / Gas / Solid Filtration

Large Image : SS Wedge Wire Screen Pipe Non Clogging For Liquid / Gas / Solid Filtration

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan
Certification:	ISO9001-2008
Model Number:	HY-130

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	USD40/pc
Packaging Details:	wooden boxes or customized
Delivery Time:	7 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 pcs /month

Contact Now

Detailed Product Description

Features:	Non-clogging ,anti-corrosion	Produt Name:	Wound Wire Well Casing Screen
Material:	Stainless Steel Wedge Wire	Technique:	Welding
Application:	Liquid/gas/solid Filtration
Highlight:	wedge wire screen cylinders , wedge wire mesh

SS Wedge Wire Screen Pipe Non Clogging For Liquid / Gas / Solid Filtration

Product Specifications

Product name	Wound Wire Well Casing Screen
Material	Stainless steel wedge wire
Technique	Welding
Features	Non-clogging, anti-corrosion
Application	Liquid/gas/solid filtration

Big Gap Up To 30mm Wedge Wire Screen Panels For Gas / Solid Filtration

Wedge Wire Screen Pipe Introduction

Due to the large open area, the super screen is more suitable for the construction of high quality wells, oil wells and gas wells.
Low-cost operation: High open-face sieves should facilitate the filtration of groundwater. Rich water will reduce the pressure drop in the well, thus reducing the energy demand on the pump.
Reduce pump wear: Under the same conditions, the high opening area allows groundwater to enter the screen much more slowly than any other filter, which will prevent the high pressure sand from entering the screen and reducing pump wear.
Extend the life of the well: Relatively speaking; it is much easier for groundwater to enter a screen with a higher open area than to enter a lower open area screen. Slow water flow should extend the life of the well.

Wedge Wire Screen Pipe Parameter Selection Table

Material	Stainless steel 304, 304L, 316, 316L, 321, etc.
Tube diameter	25 mm - 1500 mm
Tube length	0.3 m, 0.6 m, 1 m, 2 m, 3 m, 6 m and 12 m. Special sizes can be customized
Slot size	0.05 mm - 30 mm
Surface profile type	Triangle wire
Support profile	Triangle wire, round wire, flat bar or wedge wire

Contact:

Email: hengyuan3@aphywire.com

Skype: cherryhan09

Our factory Hengyuan Hardware Netting Industry Product Co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are: stainless steel vee sharped wire /wrap wire, Johnson screen, water well screen/rod based wire wrapped screen, wedge wire screen pipe, reverse wedge wire screen, screen nozzle /water and gas strainer, sieve plate, slot mesh, ARC screen, header and hub laterals & hub radial laterals, pipe base, crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
