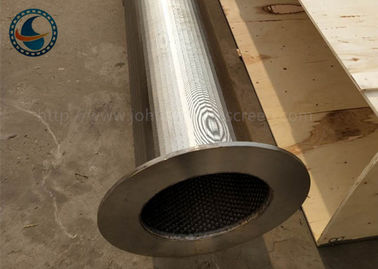

SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen

SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen
SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen

Large Image :  SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY0125
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Detailed Product Description
Features: Non-clogging Name: Slotted Flange Wedge Wire Mesh
Material: Stainless Steel 304 Length: 3431 Mm
Diameter: 380mm Technique: Full Welding
Application: Filteration Sulfur Package: Wooden Box
Wrap Wire: 1.5*2mm Support Rod: 2*3mm
High Light:

welded wedge wire screen

,

wedge wire mesh



Stainless Steel 304 Slotted Flange Johnson Vee Wire Screen , Filter Sulfur



Wedge wire screen Introduction



1: Johnson Vee wire screen is mainly in the following shapes: cylindrical, semi-cylindrical, flat panel, tubes and baskets, conical, arc filters or other more complex shapes.



2: Depending on different design, the filtration direction can be from outside to inside, or from inside to outside.

There are another designed screen - supporting rod wires are arranged vertically while the profiled wires spirally wound on the outer surface of the structure support wires.



Outside Diameter (mm) Length (mm) Slot (mm) Styles of connection(mm)

29,38,42,57,63,76,89,108,150,

168,320,600,900,985,1000 etc

1000,2000,3000

4000,5000,6000

0.02,0.1,0.25,0.5,1.0

2.0, 5.0, 10, 100

weldedrings,male/female threaded coupling ,flange,closed up.
Explanation diameter:29-1300mm length 100-6000mm low carbon galvanized,stainless steel




Wedge wire screen has a number of advantages as below :



1: Smooth surface, low hydraulic resistance, high filtration accuracy, never clogging;


2: High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;


3: Guaranteed size of the slot tight tolerance to ±0.02mm;


4: Filtration direction can be outside to inside or inside to outside;


5: High capacity filter surface, effective backwashing, and long trouble-free life.


Made from V shaped profile wire and welded by an unique welding process, wedge wire screens have great strength, precision and long service life. The features make it attractive solutions for cleaning, filtering, sifting or fractionation, dehydration liquid and granular media



SS 304 Slotted Flange Wire Mesh Tube Full Welding Johnson Vee Wire Screen 0
