Stainless Steel Wedge Wire Screen With Acid And Alkali Resistance

Large Image : Stainless Steel Wedge Wire Screen With Acid And Alkali Resistance

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE,ISO,CIQ,CO,FORM E,CCPIT etc.
Model Number:	ID:30-2000mm

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 50-200 per piece
Packaging Details:	Wooden box
Delivery Time:	5-8 work day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	More than 20 PCS per day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304,316L Etc.
Wire Size:	12, 1.22, 1.52, 23, 23.5, 34.6mm Etc	Support Rod:	23, 34.6mm Etc.
Slot:	0.1-100mm	Max Size:	4000*4000mm
Product Name:	Wedge Wire Rotary Drum Screen For Sugar Mill	End Connection:	Plain Beveled Ends, Flanged Or Threaded Couplings
Highlight:	water well screen pipe , wedge wire screen pipe

Stainless Steel Wedge Wire Screen With Acid And Alkali Resistance

Product Specifications

Attribute	Value
Material	Stainless Steel
Grade	304, 316L etc.
Wire size	1×2, 1.2×2, 1.5×2, 2×3, 2×3.5, 3×4.6mm etc
Support rod	2×3, 3×4.6mm etc.
Slot	0.1-100mm
Max Size	4000×4000mm
End connection	Plain beveled ends, flanged or threaded couplings

Product Description

Stainless Steel Reverse Wedge Wire Screen is made with high-quality stainless steel wire strip processed into a trapezoidal section, wound through automated production equipment onto support bars, and then processed by cutting, welding and other techniques to form a screening product.

Key Features

Long service life
High opening rating
Uniform screen seam with stable welding quality
Excellent strength, stiffness and load capacity
Resistant to acid, alkali, high temperature, pulling force and wear

Filter Type

From inside to outside:

Wire is the length of the screen pipe
Support rod is the length of the screen pipe

The cross-section of the screen strip is trapezoidal, with the slots at lower part being wider than those at the upper part of the screen.

Technical Parameters

Parameter	Specifications
Material	SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc
Length	Up to 4000mm
Inner Diameter	60-1300mm
Slot/Gap	25 micron to 2000 micron (Tolerance: ±5 micron)
Wedge Wire (mm)	1×2 \| 1.2×2 \| 1.5×2 \| 2×3 \| 2×3.5 \| 3×4.6 \| 3×5
Support Rod (mm)	2×3 \| 2×3 \| 2×3 \| 2×3 \| 3×4.6 3×5 3×6 \| 3×4.6 3×5 3×6 \| 3×5 3×6
Ends	With welded rings, flange etc
Filter Type	From inside to outside

All sizes are customizable according to your requirements.

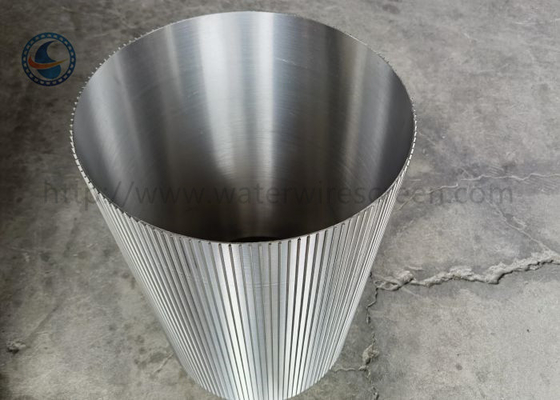

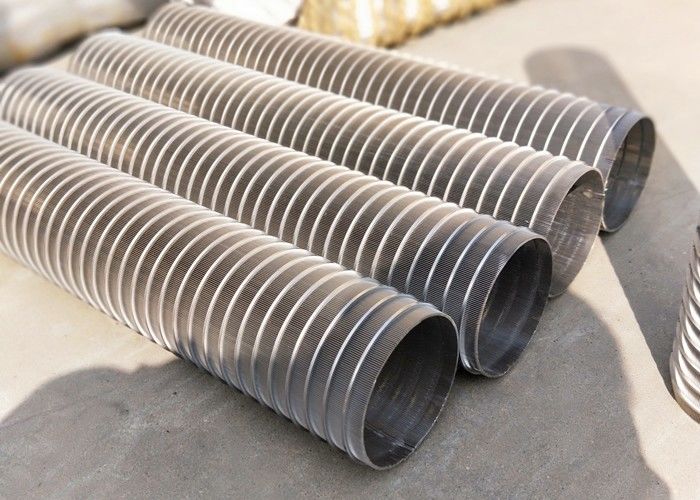

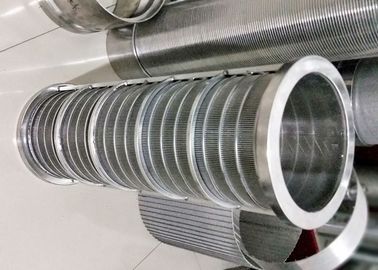

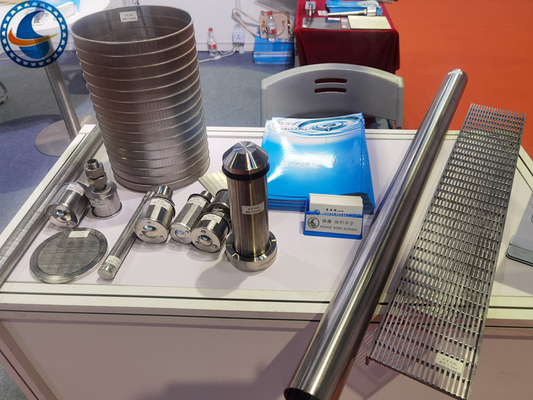

Product Images
