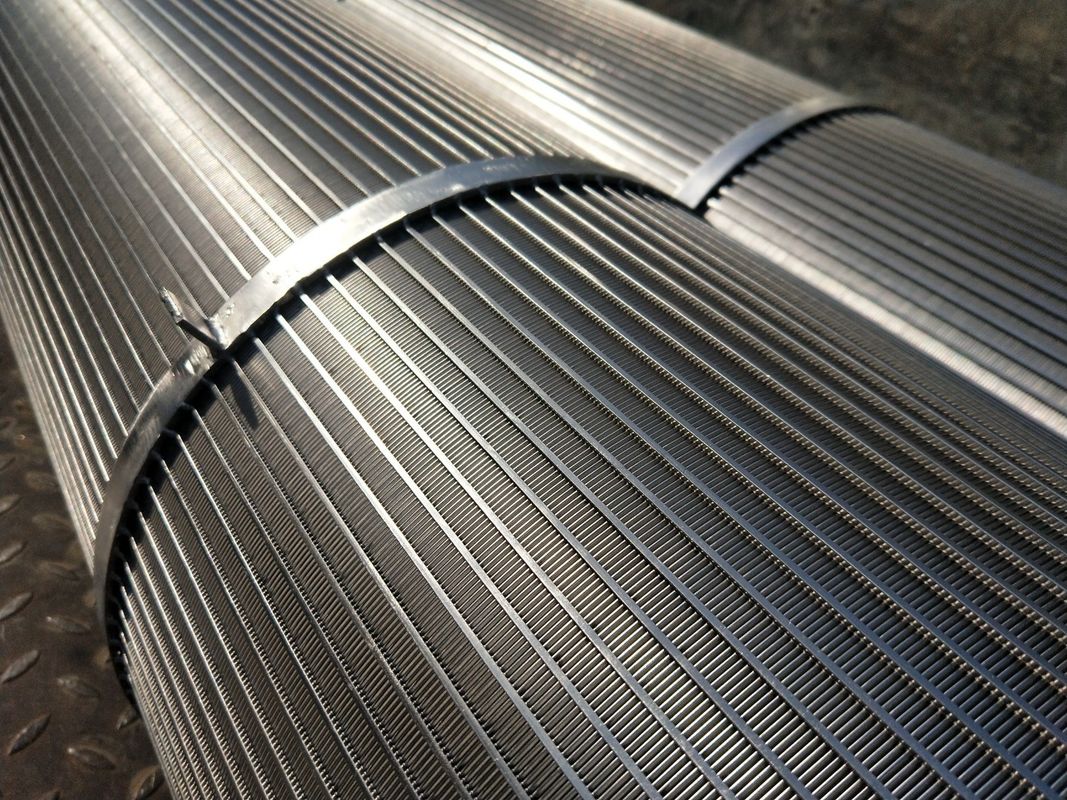

High Mechanical Strength Reverse Wedge Wire Screen Pipe With Reinforcing Rib

High Mechanical Strength Reverse Wedge Wire Screen Pipe With Reinforcing Rib
High Mechanical Strength Reverse Wedge Wire Screen Pipe With Reinforcing Rib

Large Image :  High Mechanical Strength Reverse Wedge Wire Screen Pipe With Reinforcing Rib

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: CE,ISO,CIQ,CO,FORM E,CCPIT etc.
Model Number: ID:100-1300mm
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD 50-200 per piece
Packaging Details: Wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: More than 20 PCS per day
Detailed Product Description
Grade: SS 304, 316l, 321, Duplex, Hastelloy, Etc Wire Size: 1*2,mm 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm Etc
Support Rod: 2*3mm, 3*4.6mm Etc. Slot: 0.05-100mm
Max Size: 4000*4000mm End Connection: Plain Beveled Ends, Flanged Or Threaded Couplings
Length: As Your Requiremens Inner Diameter: 60-1300mm
High Light:

wedge wire screen pipe


water well pipe

Stainless Steel Reverse SLotted Wedge Wire Screen Tube With Reinforcing Rib



The wedge mesh filter core is welded with stainless steel wedged wire.

The filtration precision is 0.02mm-1000mm.

The wedge-shaped wire mesh screen is welded by the stainless steel wedged wire and the support strip, mainly including filter plate, filter basket, filter core and so on.


Filter core features:


1, high mechanical strength, able to withstand greater pressure difference;

2, uniform filter gap, can form a more uniform filter cake, conducive to regenerative regenerative;

3, wedged filter gap, can improve the ability to regenerate backwashing;

4, pressure, temperature resistance, resistance to aging, corrosion resistance, can be suitable for various fluids

5, metal wedges. Metal mesh filter core is used as a filter element, which has the advantages of high mechanical strength, high-pressure tolerance and easy to wash and regenerate.


The near two-dimensional filter has no dead angle of particle accumulation, and the wedge gap can gather backflushing energy when backwashing and the effect of backwashing are good.

The shape of the wire has a great influence on the performance of the metal sieve, and the metal screen with the wedge section has the best performance. We are manufacturers, located in China's silkscreen Township - Anping, we have a superior geographical environment, all kinds of silk screen products we can provide to customers.

The products are processed mainly according to the customer's requirements (main products are stainless steel filter core, filter cartridge, filter and other wire mesh deep processing products). You can provide us with drawings or samples, also can describe the product, we draw you.


Our advantages:

1, manufacturer professional production, high-quality filter materials, quality and low price;

2, professional product design and development team; independent research and development of slotted special-shaped edge machine, the filter for any shape of the one-off operation.



Certification: custom-made Brand: HengYuan company
Properties: long service life Use: screening
Type: wire wound filter Material: Metal wire mesh
Scope of application: filter applicable Object liquid
Working temperature: 10-800 C Maximum working pressure difference: 10-100MPa
Filtering accuracy: 0.02-200mm Wrap Wire 1*2mm,1.2*2mm,1.5*2mm
Raw water pressure: 0.2-10KG/c Support rod: 2*3mm
Model: a variety of Specifications: a variety of
Trade mark: NO Packing: Wooden box
Output: 10000 Reinforcing Rib: 2*10mm,5*20mm etc


Stainless Steel Reverse WedgeWire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.


Reverse Wedge Wire Screen Filter type:


From inside to outside. Wire, Inside; Support rod, Outside.

1. Wire is the length of the screen pipe;

2. Support rod is the length of the screen pipe.


The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.


Reverse Wedge Wire Screen Feature:


Geological formations comprised of small, fine particles

Water wells where gravel packs will be installed

Thin aquifers, where maximum open area is required

Large- and small-diameter deep wells


Reverse Wedge Wire Screen Application:


Architecture & Construction

Food & Beverage Screens

OEM Screen Components

Refining & Petrochemical

Waste Water Treatment

Water Well & Oil well

Coal & Mine

Chemical industry


Food and beverage


Coal mining

Environmental protectio


Reverse Wedge Wire Screen Basic Parameters :


Material SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc
Length Up to 4000mm
Inner Diameter 60-1300mm
Slot / Gap 25 micron to 2000 micron (Tolerance:+-5 micron)
Wedge Wire(mm) 1x2 1.2x2 1.5x2 2x3 2x3.5 3x4.6 3x5

Support Rod


2x3 2x3 2x3 2x3









Ends With Welded rings, Flange etc
Filter Type From inside to outside
Reinforce With or without
Note All sizes are all customized, according to your requirement















Stainless Steel Reverse Wedge Wire Screen has easy leakage, wear and corrosion resistance and other characteristics.It is a rigid screening with high strength, stiffness and load capacity, can be made into various shapes of filters.

Widely used in many industries in the screening, filtering, dehydration, mud removing and other operations.
