8-5/8" SS304 Johnson Well Screen Used In Water Wells For Sand Control

Large Image : 8-5/8" SS304 Johnson Well Screen Used In Water Wells For Sand Control

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan company
Certification:	ISO, CIQ, EC, FORM E etc
Model Number:	HY150

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Johnson Well Screen	Material:	Stainless Steel
Grade:	304	Slot Size:	1.0mm
Diameter:	8-5/8 ",219mm	Length:	5.8 Meters
End Connection:	Welded Rings	Wire Size:	3*4.6mm Vee-shaped Wire
Support Rods:	ø4.0mm Round	Filter Type:	From Outside To Inside
Highlight:	8-5/8" johnson well screen , Welded Rings Ends johnson screen , ss321 johnson well screen

8-5/8" SS304 Johnson Well Screen for Water Wells and Sand Control

Product Specifications

Attribute	Value
Name	Johnson Well Screen
Material	Stainless steel
Grade	304
Slot size	1.0mm
Diameter	8-5/8" (219mm)
Length	5.8 meters
End connection	Welded Rings
Wire Size	3*4.6mm Vee-shaped wire
Support rods	ø4.0mm round
Filter type	From outside to inside

Key Features

High open area design optimizes water infiltration for superior well performance
Reduces energy consumption by maintaining higher water levels
Minimizes pump abrasion through controlled water flow velocity
Extends well lifespan with efficient, low-pressure water entry
Available in multiple materials (304, 316L, 321), sizes, and slot configurations

Technical Specifications

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Applications

Water wells

Water supply systems

Refining & petrochemical

Filter equipment

Sand control

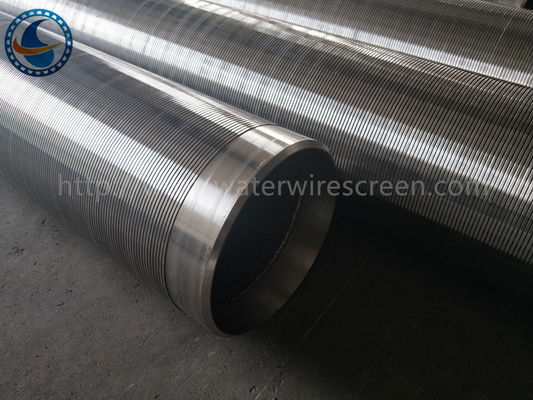

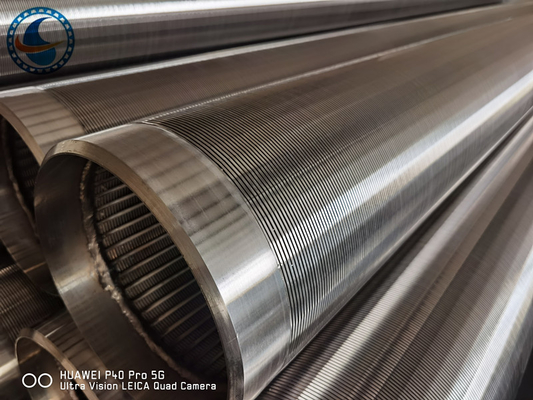

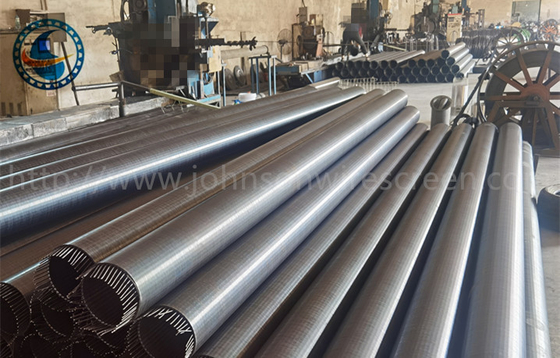

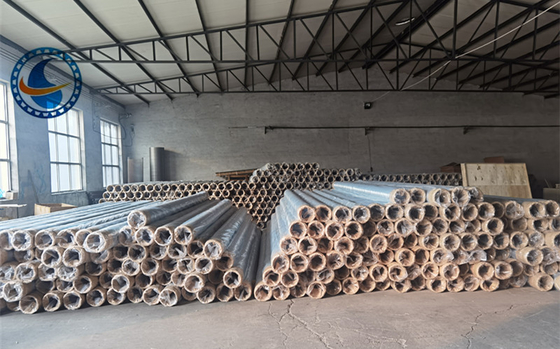

Product Images
