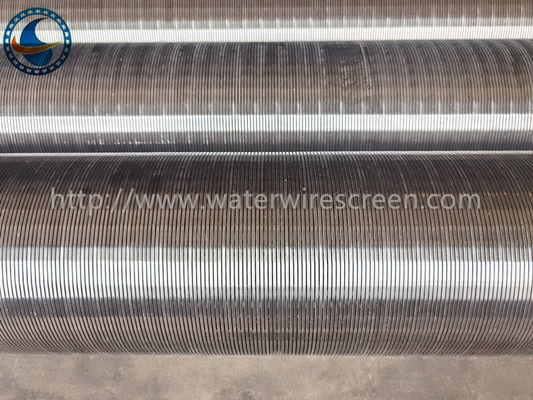

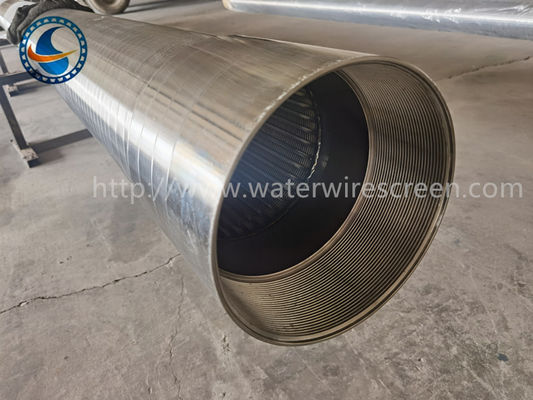

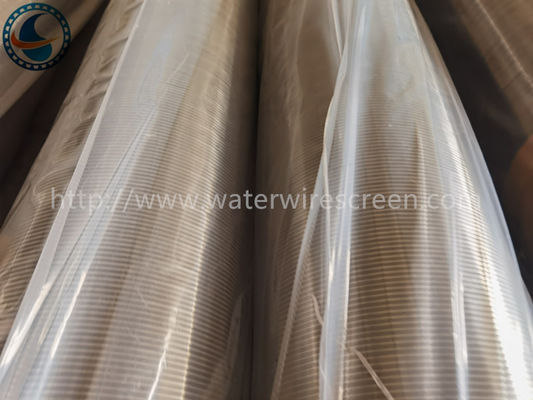

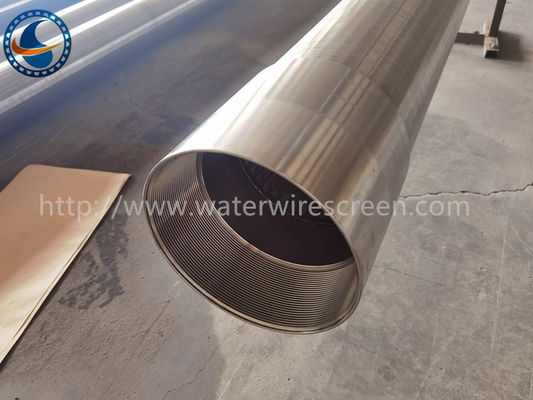

Stainless Steel 304 Slot 1.0mm 8-5/8" Water Wire Screen For Deep Wells

Large Image : Stainless Steel 304 Slot 1.0mm 8-5/8" Water Wire Screen For Deep Wells

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY100

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Slot Size:	1.0mm	Material:	Stainless Steel 304
Diameter:	219mm	Length:	5.8M
End Connection:	Lengthen Male/female Threaded	Hole Shape:	Vee Shaped Slot
Type:	Cylinder	Usage:	Liquid Filter, Solid Filter
Wire Size:	3*6mm	Support Rod Size:	ø5.0mm Round Wire
Highlight:	8-5/8" water wire screen , SS304 Water Wire Screen , 1.0mm Water Wire Screen

Stainless Steel 304 Slot 1.0mm 8-5/8" Water Wire Screen For Deep Wells

Product Specifications

Attribute	Value
Slot size	1.0mm
Material	Stainless steel 304
Diameter	219mm
Length	5.8M
End connection	Lengthen Male/female threaded
Hole shape	Vee shaped Slot
Type	Cylinder
Usage	Liquid Filter, Solid filter
Wire size	3*6mm
Support rod size	ø5.0mm round wire

Product Description

Stainless Steel 304 8-5/8" Lengthen Male/female Threaded Water Wire Screen Tube For Deep Well

Water Wire Screen Specification

Feature	Details
Material	Stainless steel (SS304 standard, also available in SS316L, SS321, 904L, Duplex 2205, 2507 etc.)
O.D	219mm
Size	8-5/8" (Also available in 4-1/2", 6-5/8", 10-3/4", 12-3/4", 14", 16" etc.)
Length	2.9m and 5.8m standard (container-friendly lengths)
Slot size	1.0mm (Also available in 0.5mm, 0.63mm, 0.75mm, 1.5mm etc.)
End connection	Male/female threaded (Also available as Welded Rings or Flange etc.)
Wire size	118# (34.6mm standard, also available in 23.5mm, 2.23.5mm, 2.54mm, 35mm, 36mm etc.)
Support rod	ø5.0mm round wire (Also available in ø2.8-6.0mm, or Vee shaped wire)
Wire shape	Vee shaped Wire (standard)

Standard Specifications

All measurements are approximate and may vary slightly

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Applications

High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904. We provide screening solutions to almost every industry, including:

Water well
Water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control

Custom OEM Services

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Customization Range

Material: Mainly stainless steel, carbon steel galvanized or other customer requirements material
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements
Diameter: 32 mm - 1300 mm
Length: 2.9 M, 5.85 M (Up to 6 M)
Connection form: Welded ring, Flange or male/female threaded connection
