Product Details:
Payment & Shipping Terms:
|
Name: | Continuous Slot Johnson Wire Wrapped Screen | Material: | Stainless Steel 304 |
---|---|---|---|
OD: | 600mm | Slot: | 0.5mm |
Length: | 3 Meters | Filter Type: | From Outside To Inside |
Wrap Wire: | 2*3.5mm Vee-shaped Wire | Support Rod: | 3*4.6mm Vee-shaped Wire |
End Connection: | Nothing | Weight: | 110KG/piece |
High Light: | Wrapped Continuous Slot Screen,Johnson Continuous Slot Screen,0.5mm Gap Continuous Slot Screen |
SS304 OD 600mm Continuous Slot Johnson Wire Wrapped Screen With 0.5mm Gap
Continuous Slot Johnson Wire Wrapped Screen Introduction:
Hengyuan Continuous Slot Johnson Wire Wrapped Screen also be named Water well screen,Johnson screen,Wedge wire screen,Vee-Wire screen pipe,Rod based continuous slot Vee-wire screen tube,Wound screen,Water filter, Screen cylinders, slot wire screen tube , well screen , strainer screens, Screen tube, oil screen tube etc
Continuous Slot Johnson Wire wrapped Screen is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.
Accurate slot and high filtration precision.
Continuous Slot Johnson Wire Wrapped Screen Advantages:
1: Non-clogging capabilities
2: Self supporting
3: High abreaction resistance
4: Large open area
5: Better sand filtration
6: Energy saving
7: Lowest possible cost
8: Long using life
9: Maximum flow capacity
Continuous Slot Johnson Wire Wrapped Screen Basic Parameters:
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
End connection |
From 29-1285mm | 100-6000mm | 0.1, 0.3, 0.5, 0.63, 0.75,1.0,1.5 etc |
Welded rings, male/female threaded coupling,flange,closed up etc. |
Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ¢ 29mm- ¢ 1285mm, the length from the 100mm-6000mm series screen pipe |
Name | Continuous Slot Johnson Wire Wrapped Sceen | ||||||
Material | SS304,Alos can be SS304L, SS316, SS316L, SS321, Duplex 2205, 2507, Hastelloy, 904L etc | ||||||
OD Range | 29mm-1285mm | ||||||
Slot Range | 50 micron to 8000 micron (Tolerance:+-5 micron) | ||||||
Length Range | Up to 6000 mm | ||||||
End connection | Flange; Welded rings; Male/female threaded; Closed up, Open ends etc. |
Continuous slot: support rods and longitudinal wire makes an opening which significantly increase the available opening area, and allow better access to the water flow.
High open area: reduce the water level, thus to save energy consumption. Meanwhile, high open area can make the groundwater enter the screen much slower than other filtration apparatus, which can avoid sand from entering screen due to high pressure, hereby lowering pump wear down.
High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.

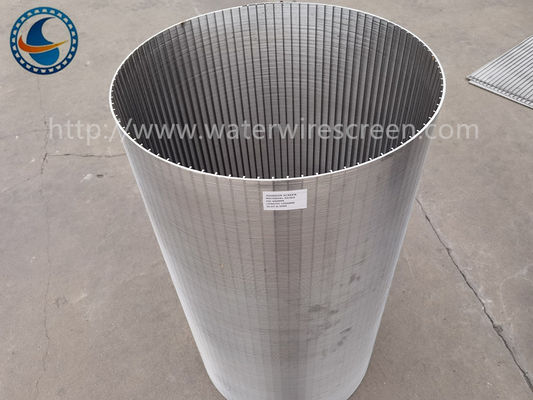

Continuous Slot Johnson Wire Wrapped Screen Pictures:
