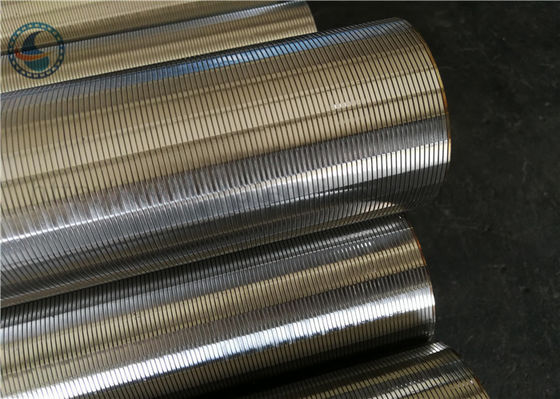

2507 Johnson Type 76mm Water Wire Screen

2507 Johnson Type 76mm Water Wire Screen
2507 Johnson Type 76mm Water Wire Screen 2507 Johnson Type 76mm Water Wire Screen

Large Image :  2507 Johnson Type 76mm Water Wire Screen

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: HengYuan
Certification: ISO, SGS, CE, CIQ
Model Number: HY-11
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes,container
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Detailed Product Description
Features: Non-clogging Name: 2507 Stainless Steel Johnson Wedge Wire Screens For Filteration
Material: Low Carbon Galvanized ,stainless Steel Length: Upto 6000mm
Diameter: 29-1200mm Technique: Full Welded
Application: Filteration Package: Wooden Boxes,container
Slot Type: Slot Wire Type: V Wire
Support Wire: V Wire Usage: Liquid Filter
High Light:

2507 water wire screen

,

Johnson water wire screen

,

76MM water wire screen



2507 Johnson type 76mm water well screen



2507 Johnson type 76mm water well screen Introduction:



Many water wells penetrate unconsolidated material and require installation of casing and a well screen to prevent inflow of sediment and possible wellbore collapse.



The space around the casing is usually sealed with grouting material of either neat cement or bentonite clay to prevent contamination by water draining from the surface downward around the outside of the casing.



Well screens (filtering devices) are installed in the water bearing formations, allowing water to move into the well, while keeping out gravel and sand.



The most popular filtering devices for water wells are continuous slot (wire-wrapped) screens and perforated liners.

Continuous slot screens made of V shape wire wrapped around a series of vertical rods. This allows the most inlet area and higher productions rates.





name 2507 Johnson type 76mm water well screen
O.D 76 mm
length 2 m
slot size 0.18 mm
end connection male/ female thread coupling
wire shap V shape, V wire
wire size 2*3mm (width*height)
support wire V shape ,V wire
other name johnson filter , johnson screen pipe, v wire wrapped screen
customization we support customization





Use:Wedge wire screen pipe for filter can be used as below:

1. Well sand control filter

2. Widely used in vairous kinds of medium filtering
3. As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
4. The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
5. The organic solution recycling filter



Advantages:
1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.

If you have any enquires please feel free to contact us !





2507 Johnson Type 76mm Water Wire Screen 02507 Johnson Type 76mm Water Wire Screen 12507 Johnson Type 76mm Water Wire Screen 22507 Johnson Type 76mm Water Wire Screen 3
