Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Downhole Slotted Tube |
|---|---|---|---|
| Material: | Stainless Steel | Diameter: | 4-1/2 " |
| Length: | 2.9 Meters | Wrapped Wire: | 2*3.5mm Vee Wire |
| Support Rod: | ø3.8mm Round Wire | Slot: | 1.0mm |
| Ends: | BTC Male/female Threaded | Technique: | Point Welding |
| Application: | Water Filter | Package: | Wooden Boxes ,or Plastic Film In Container |
| High Light: | Stainless Steel Downhole Slotted Tube,50 Bar Downhole Slotted Tube,Farm Irrigation Downhole Slotted Tube |
||

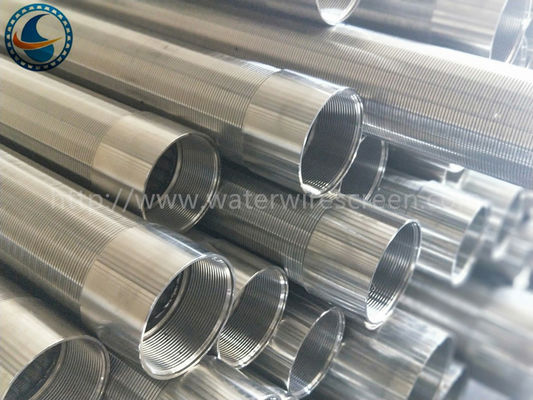

50 Bar Stainless Steel Downhole Slotted Tube For Farm Irrigation
Stainless Steel Downhole Slotted Tube also be named Johnson screen, wound screen, wire wrapped screen, wedge wire screen,Wire screen, well screen,Sand control screen.
Stainless steel Downhole Slottd Tube Information:
| Product name | 50 Bar Stainless Steel Downhole Slotted Tube For Farm Irrigation |
| Material | Stainless steel 304 |
| Diameter | 4 1/2” (114mm) |
| Slot Size (mm) | 1.0mm |
| Unit length | 2.9m fit for the container |
| Open area | up to 33.3% |
| End Connection | Male/female threaded couplings |
| Surface treatment | Polish |
| Packing | plastic film |
Features of Downhole Slotted Tube
• They are non-clogging
• Self-supported and rigid
• Very long lifetime
• Reliable and consistent filtration rating
• All metallic construction (non-metallic also possible like PP)
• Easy to clean smooth filtering surface
Downhole Slotted Tube Applications:
Downhole slotted tube is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.
Downhole Slotted Tube Advantages:
Downhole slotted tube opening significantly increases the available open area, providing greater access to the water-bearing zone.Non-clogging: "V" shaped or wedge shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.Large open area: this allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
