SS304 Vee Wire Water Well Screen Filter For Sand Control

"My project is in urgent need of the Water Wire Screen, you completed my order within the required time. It really helped me a lot. My Reliable Suppliers ! "

—— Mohamed

" Your Wedge Wire Screen is reasonable in price and excellent in quality. When I do my next project, I'll be sure to contact you again."

—— Mr.Thien

"This is my first time to contact with Wire Wrapped Screen, There were many things I didn't understand. You explained to me patiently, your service was excellent."

—— Mr.Alan

I'm Online Chat Now

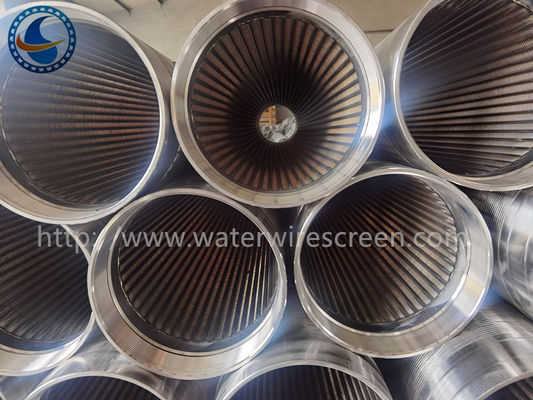

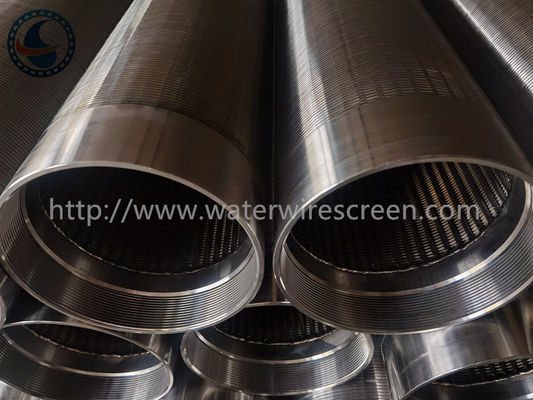

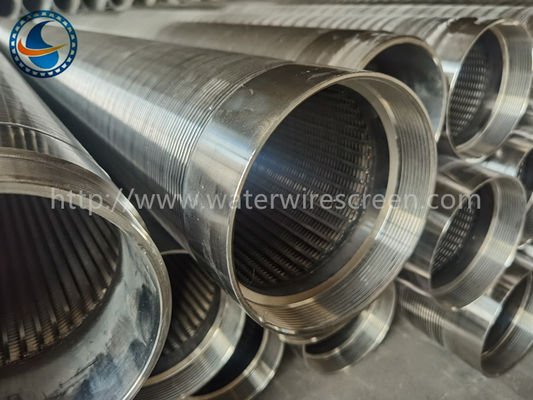

SS304 Vee Wire Water Well Screen Filter For Sand Control

SS304 Vee Wire Water Well Screen Filter For Sand Control

Large Image :  SS304 Vee Wire Water Well Screen Filter For Sand Control

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: 216mm
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: negotiated price
Packaging Details: wooden boxes,container
Delivery Time: according to the numbers
Payment Terms: L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1500 pieces/month
Detailed Product Description
Features: Non-clogging Name: Johnson Sand Control Screen
Material: AISI 304 Length: 3000mm
Slot: 1.0mm Diameter: 219mm
Ends: Male/female Threaded Wire Size: 3*4.6mm Vee Shaped
Support Rod: 3*6.2mm Vee Shaped Technique: Point Welding
Application: For Sand Control In Water Well Package: Wooden Boxes
Highlight:

SS304 Sand Control Screens

,

1.0mm Slot Sand Control Screens

,

female threaded Sand Control Screens

SS304 Vee Wire Water Well Screen Filter For Sand Control
Product Specifications
Attribute Value
Name Johnson Sand Control Screen
Material AISI 304
Length 3000mm
Slot 1.0mm
Diameter 219mm
Ends Male/female threaded
Wire size 3*4.6mm Vee shaped
Support rod 3*6.2mm Vee shaped
Technique Point welding
Features Non-clogging
Application For sand control in water well
Package Wooden boxes
Product Description
Our SS 304 Johnson Sand Control Screen is designed for infiltration galleries at intake wells. Manufactured by Hengyuan Hardware Netting Industry in Anping County, Hebei Province, China, this premium filtration solution is ideal for various water management applications.
Standard Specifications
Materials:
AISI 304
Diameter:
219mm
Slot:
1.0mm
Wrap wire:
3*4.6mm Vee wire
Support rod:
3*6.2mm Vee wire
Ends:
Male/female threaded
Available Sizes
SIZE (INCH) O.D (MM) SLOT (MM) LENGTH (M) COLLAPSE STRENGTH (BAR) TENSILE WEIGHT (TON) WRAP WIRE (WIDTH*HEIGHT)(MM) RODS (MM)
3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59
Applications
The Johnson Sand Control Screen is a specialized filtered water tubing with perforations designed for multiple applications:
  • Compatible with deep well pumps and submersible water pumps
  • Water treatment equipment and environmental protection systems
  • Seawater desalination for industrial and domestic water supply
  • Municipal water treatment and softening processes
  • Petroleum industry applications including terminal filtration
  • Chemical processing for acid, alkali, and organic solution filtration
Key Advantages
  • Maximum open area while maintaining structural integrity
  • Uniformly arranged openings for direct water flow from formations
  • Design allows complete formation access during development
SS304 Vee Wire Water Well Screen Filter For Sand Control 0 SS304 Vee Wire Water Well Screen Filter For Sand Control 1
