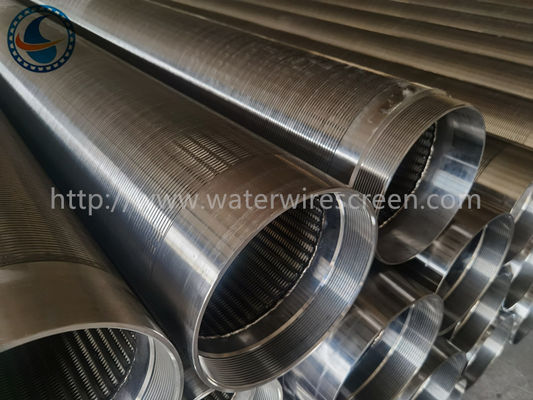

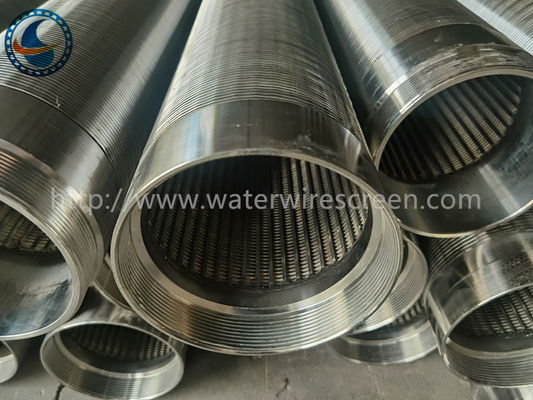

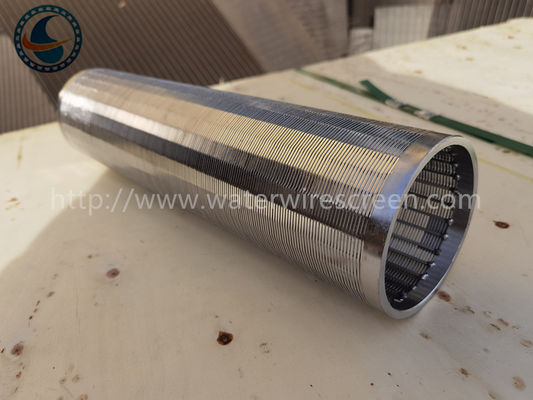

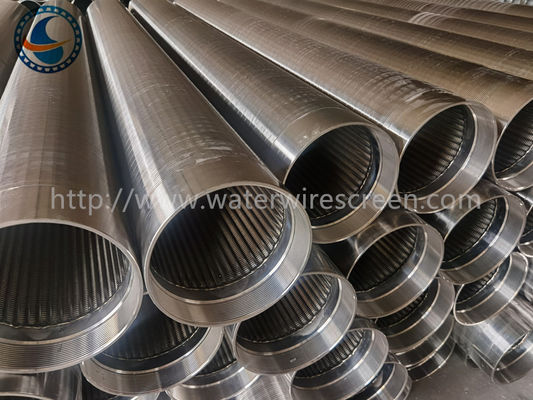

Stainless Steel 304 Full Welded Wire Wrapped Screen Filter

Large Image : Stainless Steel 304 Full Welded Wire Wrapped Screen Filter

Product Details:

Place of Origin:	Hebei,China
Brand Name:	HengYuan
Certification:	ISO
Model Number:	8-5/8"

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	negotiated price
Packaging Details:	wooden boxes,container
Delivery Time:	according to the numbers
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500 pieces/month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	Welded Wire Wrapped Sand Control Screen Tube
Material:	AISI 304	Length:	2900mm
Slot:	0.75mm	Diameter:	8-5/8" (219mm)
Ends:	Male/female Threaded	Wire Size:	3*4.6mm Vee Shaped
Support Rod:	3*6.2mm Vee Shaped	Technique:	Point Welding
Application:	For Sand Control In Deep Well	Package:	Wooden Boxes
Highlight:	welded wire wrapped screen , male threaded Wire Wrapped Screen , 0.75mm slot wire wrapped screen

Stainless Steel 304 Full Welded Wire Wrapped Screen Filter

Product Specifications

Attribute	Value
Name	Welded Wire Wrapped Sand Control Screen Tube
Material	AISI 304
Length	2900mm
Slot	0.75mm
Diameter	8-5/8" (219mm)
Ends	Male/female threaded
Wire size	3*4.6mm Vee shaped
Support rod	3*6.2mm Vee shaped
Technique	Point welding
Features	Non-clogging
Application	For sand control in deep well
Package	Wooden boxes

Product Description

SS 304 Welded Wire Wrapped Sand Control Screen Tube For Deep Well

Also known as Johnson strainer or Johnson filter, our water well screens have been recognized as world-leading industrial filters since 1904. We provide screening solutions to various industries including:

Water Well
Waste Water Treatment
Water supply systems
Coal & Mine
Food Processors & Beverage Screens
Environmental protection
Refining & Petrochemical
Architecture & Construction

Standard Sizes

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE (WIDTH*HEIGHT)(MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Applications

This Johnson Sand Control screen is a kind of filtered water tubing with perforation. It can be used with deep well pumps, dive water pumps, and in water-treating equipment. Applications include environmental protection, seawater desalination for industrial and domestic use, running water treatment, water softening treatment, and in the petroleum industry for product terminal filters, chemical acid and alkali liquid filters, and organic solution recycling filters.

Key Advantages

The largest possible open area consistent with strength requirements
Openings are uniformly arranged so water flowing from the formation can enter the screen directly
Design allows the entire formation to be reached during development

Manufactured by Hengyuan Hardware Netting Industry Product Co., Ltd located in Anping County, Hebei Province, China. Our main products include Johnson Sand Control Screens, Johnson screens, water well screens, rod-based wire wrapped screens, wedge wire screen pipes, reverse wedge wire screens, screen nozzles, water and gas strainers, sieve plates, slot mesh, arc screens, and wound screens.
