Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap
Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap

Large Image :  Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO9001-2008
Model Number: HY32504
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 100-300/pcs
Packaging Details: wooden boxes or customized
Delivery Time: 7 days or based on the quantity
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs /month
Detailed Product Description
Features: Non-clogging Name: Wedge Wire Screen
Material: Stainless Steel 304 O.D: 120mm
Slot: 0.08mm (80um) Length: 500mm
Surface Wire: 1.5*2mm Vee Wire Support Rod: 2*3mm Vee Wire
Technique: Welding Application: Liquid /Soild Filtration
High Light:

Wedge Wire Resin Trapper Screen Pipe

,

Resin Trapper Wedge Wire Screen Pipe

,

150um Gap Wedge Wire Screen Pipe

Stainless Steel 304 Wedge Wire Resin Trapper Screen Pipe With 150um Gap



Wedge wire resin trapper screen pipe, also called Johnson screen, wire wrapped screen, water well screen.

It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wedge wire screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.



Wedge Wire Resin Trapper Screen Pipe Normal Sizes:

Material: Stainless Steel 304, 316L, etc.

Shape:Cylinder/ Pipe/ Tube

Cylinder Diameter:29-1000m

Slot size (mm):0.5, 0.75, 1.0mm in usual. From 0.05-100mm

Filter type:From outside to inside

Length: Upto 3000mm

End connection:One end closed up,the other end with flange



Outside Diameter

(mm)

Length (mm) Slot (mm) Styles of connection

29,38,42,57,63,

76,89,108,168,

320,600,900,

1278 etc

1000,2000,3000

0.05, 0.1, 0.25,

0.5, 1.0  etc

Welded rings, male/female threaded coupling,flange,closed up etc.
Explanation Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ¢ 29mm- ¢ 1278mm, the length from the 100mm-6000mm series screen pipe

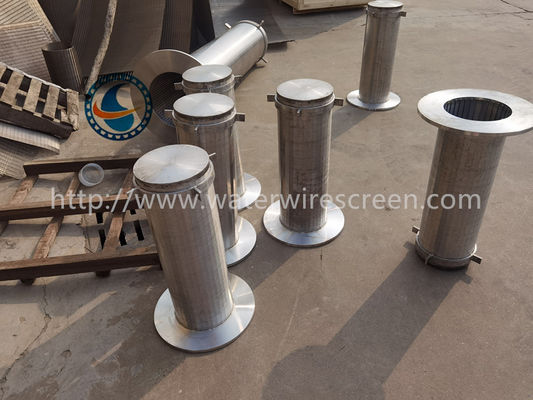

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 0

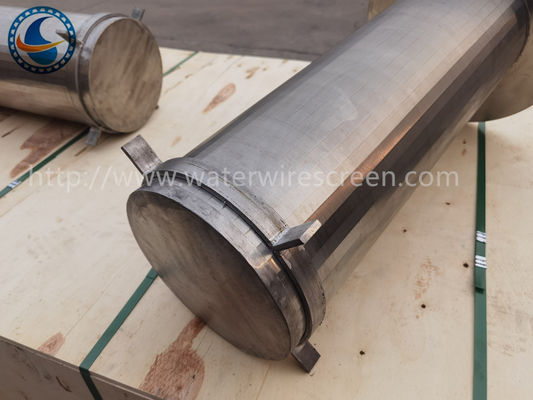

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 1

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 2

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 3

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 4

Stainless Steel 304 Resin Trapper Wedge Wire Screen Pipe With 150um Gap 5
