Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets

Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets
Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets

Large Image :  Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number: HY032602
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD 50-200 per piece
Packaging Details: Wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: More than 20 PCS per day
Contact Now
Detailed Product Description
Name: Profile Wedge Wire Screw Press Baskets Material: Stainless Steel 304
ID: 72mm OD: 80mm
Length: 362mm Slot: 0.3mm
Wire Size: 1.2*2mm Vee Wire Support Rod: 2*3mm Vee Wire
Ends: Nothing Filter Type: FITO
Highlight:

sus304 v wire screen filter

,

72mm ID v wire screen filter

,

80mm OD v wire screen filter

Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets
Product Specifications
Attribute Value
Name Profile Wedge Wire Screw Press Baskets
Material Stainless Steel 304
ID 72mm
OD 80mm
Length 362mm
Slot 0.3mm
Wire size 1.2*2mm Vee wire
Support rod 2*3mm Vee wire
Ends Nothing
Filter type FITO
Product Description

Stainless Steel 304 Profile Wire Wedge Wire Screw Press Baskets

Profile Wedge Wire Screw Press Baskets are custom designed to fit all makes and models. HENGYUAN designs and manufactures a screw press basket to fit your needs. Our baskets are high-strength, drilled hole and Vee-Wire Shaped slotted designs, which provide increased open area, greater fiber retention and better effluent clarity.

Key Characteristics
  • Custom Designed
  • High Strength
  • Drilled Hole
  • Machine Slot
  • Wedge wire
  • Increased open area
  • Better Fiber retention
  • Increased effluent clarity
  • Kinds of materials
Standard Sizes
Outside Diameter (mm) Length (mm) Slot (mm) Type of end connection
29,38,57,63,76,89,108,150,168,320,600 etc 500,1000,2000 etc 0.05,0.1,0.25,0.5,1.0 etc Welded rings, male/female threaded coupling, flange, closed up and so on

Besides above of the specification screen pipe, we also can act according to the customer's request the manufacture diameter from ￠ 29mm- ￠ 1000mm, the length from the 100mm-4000mm series screen pipe.

Profile Wire Wedge Wire Screw Press Baskets are made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.

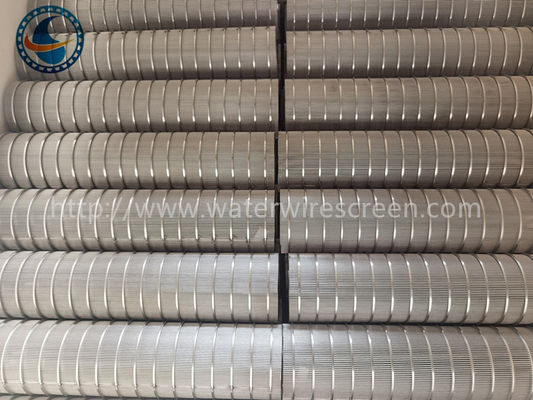

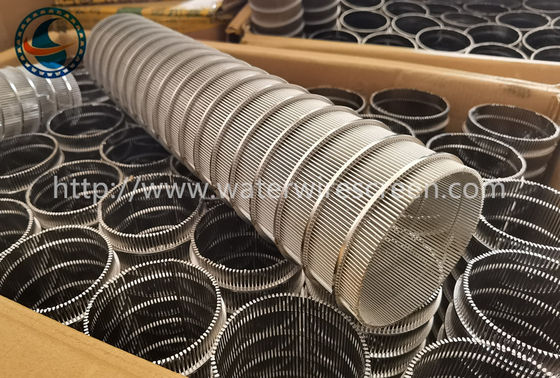

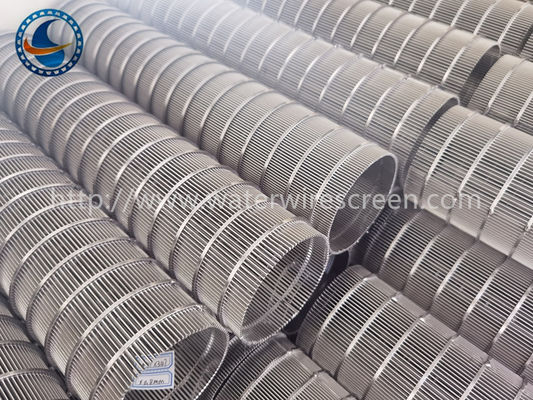

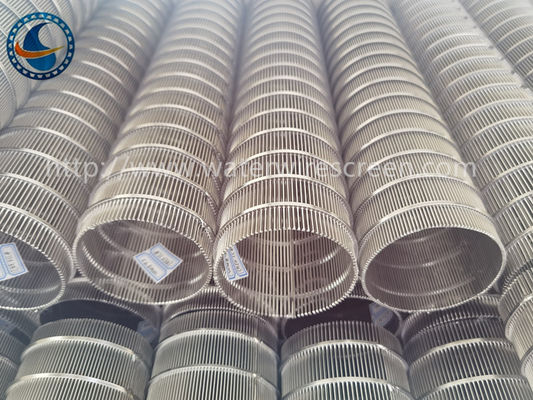

Product Images
Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets 0 Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets 1 Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets 2 Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets 3 Sus304 Profile 80mm OD V Wire Screen Filter Screw Press Baskets 4
