|Name:||Johnson Wedge Wire Screen||Material:||Stainless Steel|
|Slot Size:||2.0 Mm||Length:||3000 Mm|
|Wrap Wire:||1.5*2mm Vee Wire||Support Rod:||2*3mm Vee Wire|
|Package:||Woden Box||Filter Type:||From Outside To Inside|
ss304 wedge wire filter,
od600mm wedge wire filter,
hydropower plants wedge wire filter

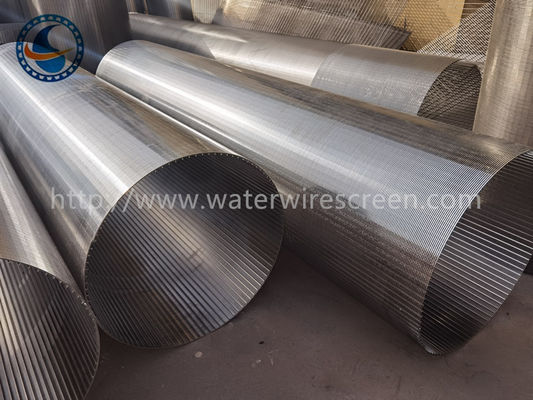

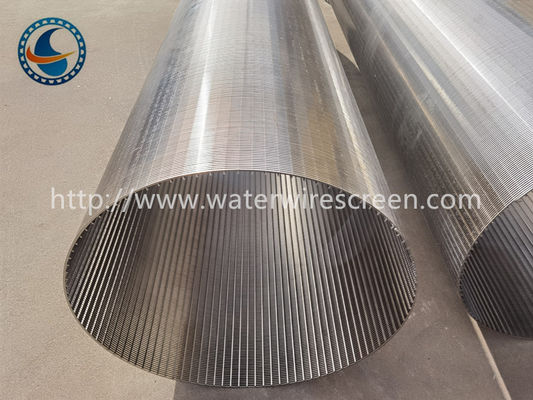

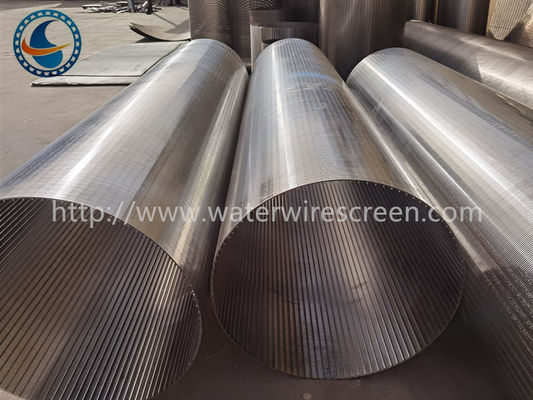

Johnson Wedge wire screen Tube is made by Vee wire and support rod.
There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.The filter screen cylinder has a number of longitudinal and horizontal ribs on the outside, greatly enhancing the anti-crushing strength of the sieve cylinder, especially suitable for sieving cylinder with rotating blades inside the extruder.
|Product name||Johnson wedge wire screen tube|
|Material||Stainless steel 304|
|Slot Size||2.0 mm|
|Filter type||From outside to inside|
|Wire size||1.5*2 mm|
|Support rod||2*3 mm|
Johnson Wedge Wire Screen Tube Regular Specifications:
Material: stainless steel 304, we can also make SS202, 316L,321 etc.
I.D.: 21 - 1300 MM
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Specification of the wrap wire:1*2 mm, 1.2*2mm, 1.5*2mm, 2*3 mm, 2*3.5 mm, 2.2*3.5mm, 3*4.6 mm and so on.
Specification of the rod: 2* 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from outside to inside
The wedge wire is circle, and the support rod is vertical.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.
