Ss 316l Profile Vee Wire Screen 0.2mm Slot Id 40mm

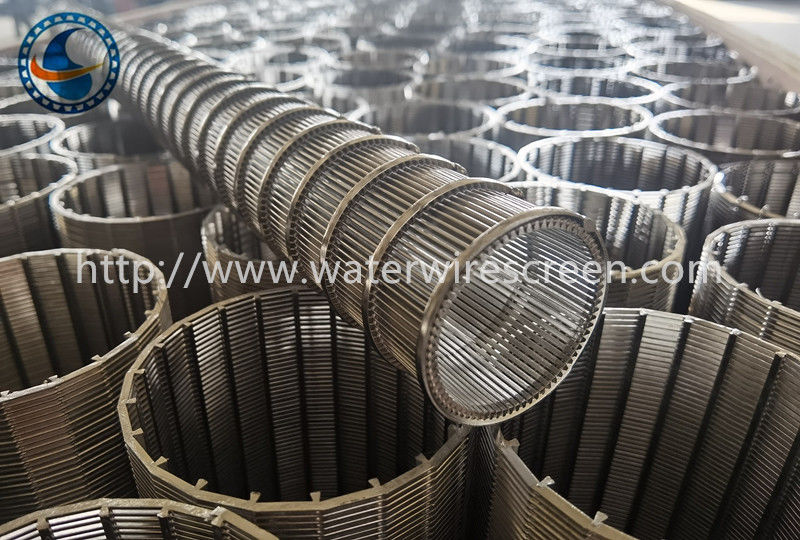

Large Image : Ss 316l Profile Vee Wire Screen 0.2mm Slot Id 40mm

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number:	HY0524

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 50-200 per piece
Packaging Details:	Wooden box
Delivery Time:	5-8 work day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	More than 20 PCS per day

Contact Now

Detailed Product Description

Name:	Profile V Wire Screen Filter	Material:	Stainless Steel 316L
ID:	40mm	OD:	48mm
Length:	687mm	Slot:	0.2mm
Wire Size:	1.5*2mm Vee Wire	Support Rod:	2*3mm Vee Wire
Ends:	Nothing	Filter Type:	FITO
Highlight:	ss profile vee wire screen , 0.2mm slot vee wire screen , id 40mm vee wire screen

Stainless Steel 316L Profile V Wire Screen Filter With 0.2mm Slot, ID 40mm

Profile Wedge Wire Screw Press Baskets are custom designed to fit all makes and models.

HENGYUAN designs and manufactures a screw press basket to fit your needs.

Our baskets, are high-strength, drilled hole and Vee-Wire Shaped slotted designs, which provide increased open area, greater fiber retention and better effluent clarity.

Profile V Wire Scren Filter Normal Sizes:

Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc

0.05,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,flange,

closed up and so on

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request.Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm.

Profile V Wire Screen Filter Characteristis:

Custom Designed

High Strength

Drilled Hole

Machine Slot

Wedge wire

Increased open area

Better Fiber retention

Increased effluent clarity

Kinds of materials

Profile V Wire Screen Filter is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.

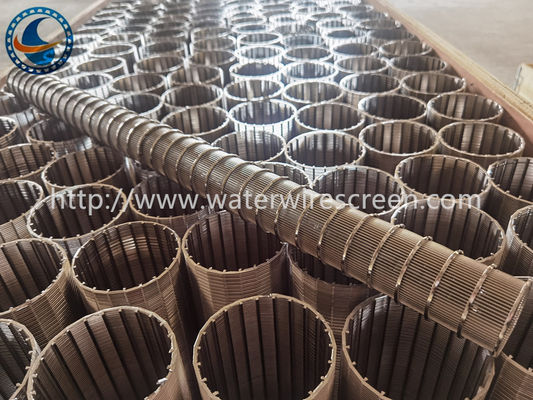

Ss 316l Profile Vee Wire Screen 0.2mm Slot Id 40mm 0

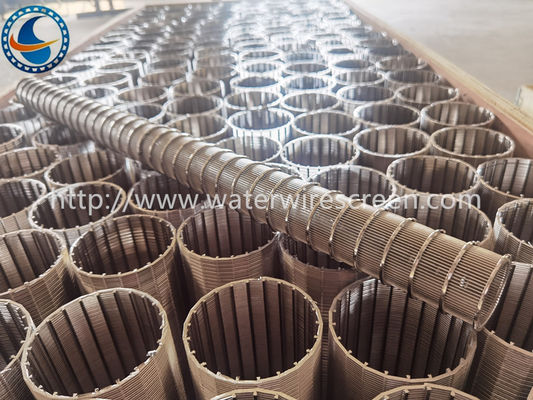

Ss 316l Profile Vee Wire Screen 0.2mm Slot Id 40mm 1

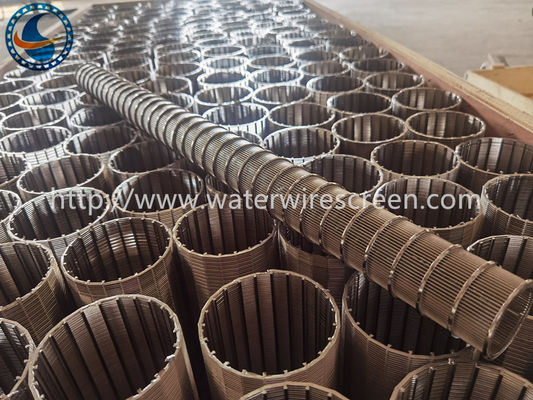

Ss 316l Profile Vee Wire Screen 0.2mm Slot Id 40mm 2
