Product Details:
Payment & Shipping Terms:
|
| Name: | Welded Continuous Wedge Wire Screen | Material: | Stainless Steel Or Low Carbon Galvanized |
|---|---|---|---|
| Length: | 2.9m Or 5.8m To Fit Container | Slot: | 0.5mm, 0.75mm, 1.0mm,1.5mm Etc |
| Enc Connection: | Welded Rings Or Male/Female Threaded | Surface: | Polished |
| Advantages 1: | Large Open Area | Advantages 2: | Energy Saving |
| Wire Size: | 2*3.5mm, 2.2*3.5mm,3*4.6mm Etc | Support Rod: | ø3.8-6.0mm |
| High Light: | stainless steel continuous slot screen,welded continuous slot screen,water well drilling continuous slot screen |
||

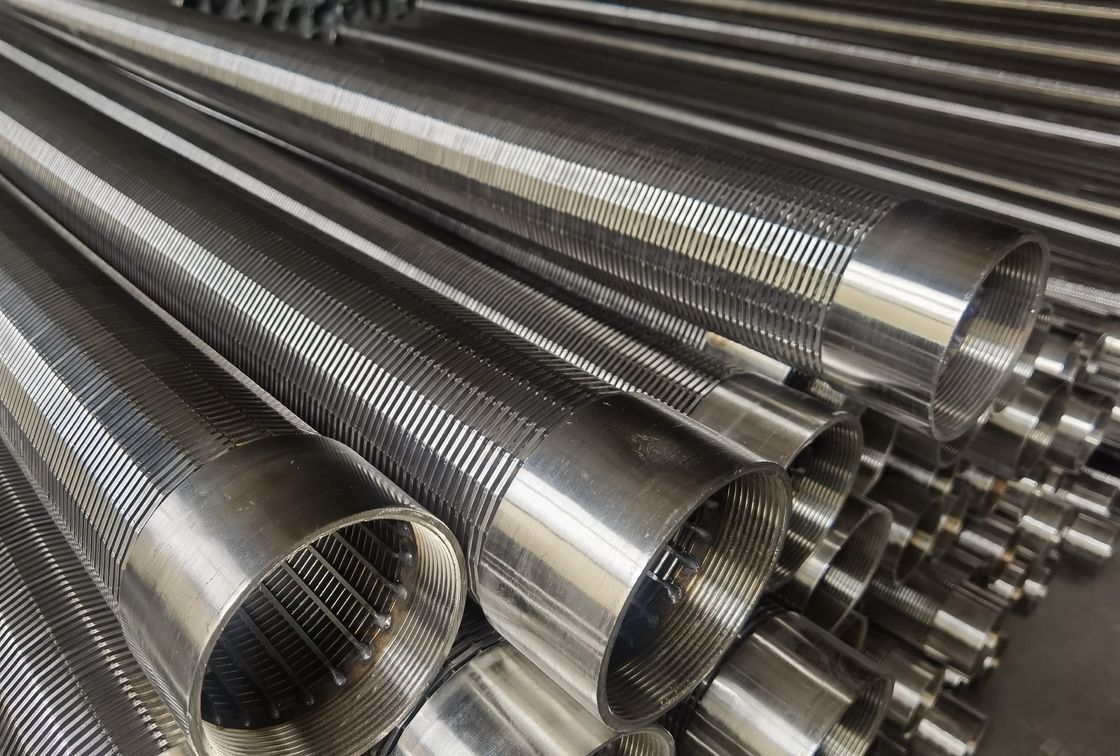

1. Welded Continuous Wedge Wire Screen is made up of Vee-shaped wire and round support rod in each intersection welded together.
2. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
3. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.
4. It also can be used for a variety of medium.
|
Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
| Material: Stainless steel 304,316L,Non-magnetic SS, Low carbon galvanized,904L,Duplex steel etc. |
| Diameter: From 29-1300mm (Normal diameter is in the below table) |
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) |
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) |
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,4*7mm etc. |
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. |
|
Use:Water Well,Waste Water Treatment,Water supply systems,Architecture & Construction Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,etc. |
Material: Low carbon galvanized or stainless steel.
Diameter: 2" 3" 4" 6" 8" 10" 12" 14" 16"
Slot size: 0.5mm, 0.75mm, 1.0mm in usual
Length: 2.9m or 5.8m to fit container
End connection:Male/female threaded couplings Or Welded rings/ Plain beveled ends
Structure principle: stainless steel wedge filter is a kind of used for screening and filtering of the metal mesh structure element, concrete strength, the strength, stiffness and bearing capacity, can be made into various shapes of the rigid screening filter
Scope of application: used with petroleum, chemical, pharmaceutical, water treatment, environmental protection, food and light paper and other industries.
These size is this form, are all normal size we make.
We can also any other sizes as your request.
Pls supply your drawing to us is ok
