Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Johnson Wire Wrapped Screen Tube |
|---|---|---|---|
| Material: | Low Carbon Galvanized | Diameter: | 4-1/2" |
| Length: | 2900mm | Slot: | 1.0mm |
| Wire Size: | 2*3.5mm Vee Wire | Support Rod: | ø3.8mm |
| Technique: | Full Welded | Application: | In Water Well For Sand Control |
| Package: | Container | Surface: | Galvanized |
| High Light: | 4-1/2inch johnson wire screen,non clogging wire wrapped screen,4-1/2" wire wrapped screen |
||

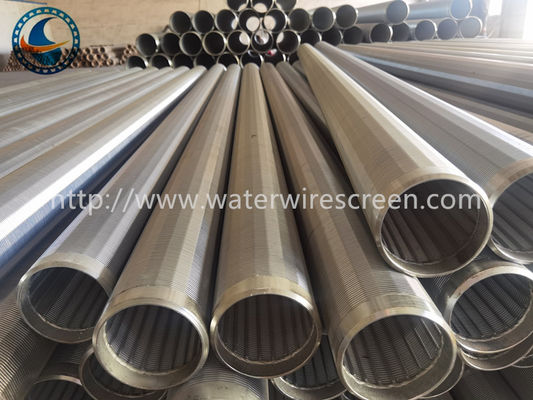

Johnson wire wrapped screen tube is welded by winding strip winding bracket, it has high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screening filter device. This product is processed by fusion welding process, seam screen surface has the advantages of high screening efficiency, low maintenance requirements, long service life.
Material: Low carbon galvanized, Alao can be SS 201, 304, 304L, 316, 321, etc
Length: 2.9m or 5.8m long to fit container
Hengyuan can customize various specifications of Johnson wire wrapped screen tube.
1. The Johnson wire wrapped screen tube with higher porosity is more suitable for the construction of high-efficiency water, oil and gas Wells.
2, Low operating cost, high porosity of the filter pipe is more conducive to the infiltration of groundwater, abundant water makes the water level drop depth is reduced, thus reducing energy consumption.
3, Reduce the wear of the pump, under the same conditions, the higher porosity makes the groundwater in the infiltration of the filter pipe speed is much slower than the infiltration of other filtration devices, so as to avoid sand in the larger water pressure into the filter pipe, reduce the wear of the pump.
4, Prolong the life of the well, relatively speaking, groundwater infiltration into the pore filter high filter pipe easier, low water flow speed, prolong the service life of the well.
|
Name: Johnson screen,Water wire screen,Water well screen, Wire warp screen,Wedge wire screen, Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen. |
|||||||
|
Material: Stainless steel 304,316L,Non-magnetic Stainless steel, Low carbon galvanized,904L, |
|||||||
| Diameter: From 29-1300mm (Normal diameter is in the below table) | |||||||
| Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table) | |||||||
| Length: From 100-6000mm (Normal length is 2.9m and 5.8m, to fit container) | |||||||
| Wrap wire:2*3.5mm,2.2*3.5mm,2.2*4.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3*7mm etc. | |||||||
| Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire. | |||||||
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc. | |||||||
|
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine, |
|||||||
|
Sizes (inch) |
OD (mm) |
Slot (mm) |
Length (m) |
Tenslie Strength |
Collapse Strength |
Wrap wire Vee-shaped wire(mm) |
Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2*3.5 (Width*height) | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2*3.5(Width*height) | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2*3.5(Width*height) | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0(Width*height) | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5(Width*height) | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0(Width*height) | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0(Width*height) | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2*3.5(Width*height) | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*4.6(Width*height) | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0(Width*height) | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0(Width*height) | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0(Width*height) | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0*5.0(Width*height) | ø4.0MM×54 |
