8-5/8" Ss Sand Control 219mm Johnson Wire Screen Filter Pipe For Oil Well

"My project is in urgent need of the Water Wire Screen, you completed my order within the required time. It really helped me a lot. My Reliable Suppliers ! "

—— Mohamed

" Your Wedge Wire Screen is reasonable in price and excellent in quality. When I do my next project, I'll be sure to contact you again."

—— Mr.Thien

"This is my first time to contact with Wire Wrapped Screen, There were many things I didn't understand. You explained to me patiently, your service was excellent."

—— Mr.Alan

I'm Online Chat Now

8-5/8" Ss Sand Control 219mm Johnson Wire Screen Filter Pipe For Oil Well

8-5/8" Ss Sand Control 219mm Johnson Wire Screen Filter Pipe For Oil Well

Large Image :  8-5/8" Ss Sand Control 219mm Johnson Wire Screen Filter Pipe For Oil Well

Product Details:
Place of Origin: Hengshui Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: 8-5/8"
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: negotiated price
Packaging Details: wooden boxes,container
Delivery Time: according to the numbers
Payment Terms: L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1500 pieces/month
Detailed Product Description
Features: Non-clogging Name: Johnson Sand Control Wire Screen Filter Pipe
Material: AISI 304 Length: 3000mm
Slot: 1.0mm Diameter: 8-5/8" (219mm)
Ends: Male/female Threaded Wire Size: 3*4.6mm Vee Shaped
Support Rod: ø3.8mm Round Wire Technique: Point Welding
Application: For Sand Control In Oil Wells Package: Wooden Boxes
Highlight:

8-5/8" johnson wire screen

,

219mm johnson wire screen

,

8-5/8 inch johnson screen filter

8-5/8" SS Johnson Sand Control Wire Screen Filter Pipe
Product Specifications
Attribute Value
Name Johnson Sand Control Wire Screen Filter Pipe
Material AISI 304
Length 3000mm
Slot 1.0mm
Diameter 8-5/8" (219mm)
Ends Male/female threaded
Wire size 3*4.6mm Vee shaped
Support rod ø3.8mm round wire
Technique Point welding
Features Non-clogging
Application For sand control in oil wells
Package Wooden boxes
Product Overview

The 8-5/8" SS Johnson Sand Control Wire Screen Filter Pipe, also known as Johnson strainer or Johnson filter, is a premium industrial filtration solution with applications across multiple industries. Since 1904, Johnson filters have set the standard for reliable screening technology.

Standard Sizes
SIZE (INCH) O.D (MM) SLOT (MM) LENGTH (M) COLLAPSE STRENGTH (BAR) TENSILE WEIGHT (TON) WRAP WIRE (WIDTH*HEIGHT)(MM) RODS (MM)
3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59
Key Features
  • Constructed with wedge-shaped wire winding welded to wedge-shaped bars at each intersection for superior strength
  • Precise gap sizing (0.1mm-6mm available) ideal for fine sand and silty sand formations
  • 60% filtration area provides superior flow rates - 3x bridge filter pipes and 9x slit filter pipes
  • Wedge structure design prevents screen clogging and facilitates easy backwashing
  • Reduces water level depth and energy consumption through efficient water penetration
  • Minimizes equipment wear by reducing sand friction against components
  • Available in stainless steel, galvanized carbon steel, or plastic-coated carbon steel
Applications

This sand control wire screen filter pipe is ideal for gravel packing in vertical, inclined, and directional wells across multiple industries including:

  • Oil and gas well sand control
  • Water well systems
  • Waste water treatment
  • Coal and mining operations
  • Food processing and beverage production
  • Environmental protection systems
  • Petrochemical refining
  • Construction and architectural applications
Connection Options

Available with groove connections or threaded connections to suit various installation requirements.

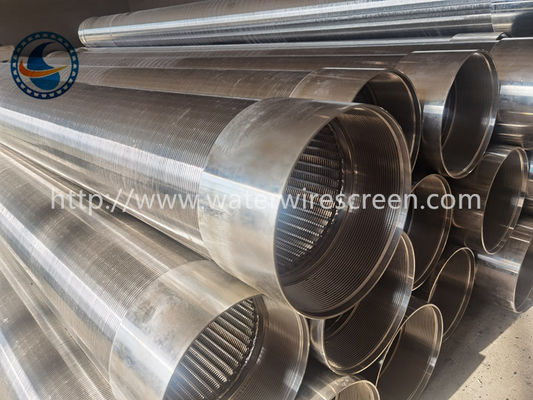

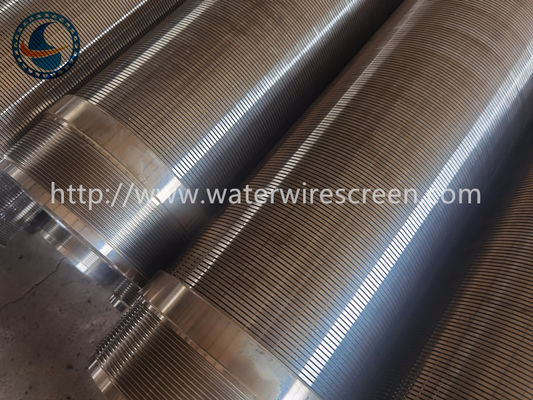

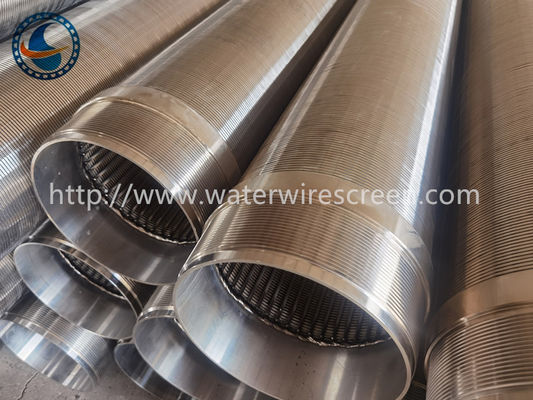

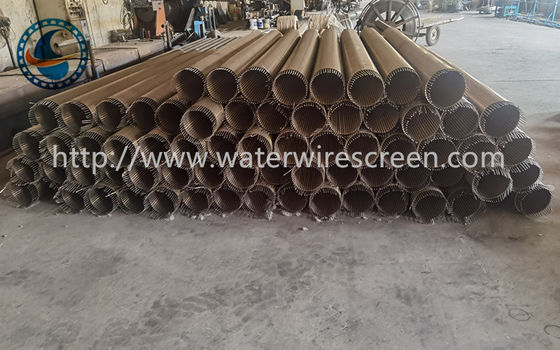

Product Images
