| Name: | Johnson Wire Wrapping Screen | Material: | Stainless Steel 304 |
|---|---|---|---|
| Length: | 2900mm | Diameter: | 89mm |
| Slot Size: | 1.5mm | Wire: | 1.5*2mm Vee- Wire |
| Support Rod: | 2*3mm Vee-Wire | End Connection: | Male/female Threaded |
| Hole Shape: | Wedge,v-shape | Feature: | Corrosion Resistance |
| Size: | Can Be Customized | Weave Style: | Wedge Wire Wrapped |
| High Light: | 304 stainless steel johnson wire screen,304 stainless steel sand control screens,2900mm length sand control screens |
||

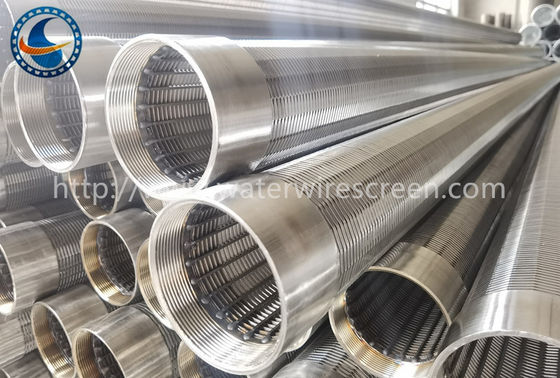

Johnson Wire Wrapping Screen is welded by winding strip winding bracket, it has high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screening filter device. This product is processed by fusion welding process, seam screen surface has the advantages of high screening efficiency, low maintenance requirements, long service life.
Due to there are many various specifications and sizes, So can't supply you quotation here, specific specifications can be directly contact us.
Looking forward to cooperating with you.
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
1. Easy to leak, wear and corrosion resistance.
2. The cross section of the mesh is trapezoidal. The gap is narrow at the top and wide at the bottom.
3. It is a screen bar made of cold-rolled stainless steel wire.
The support bar is welded by automatic mine screen production equipment.
The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength is high. Rigidity and bearing capacity can be made into rigid screening and filtering devices of various shapes.
