Name: | Wet And Dry Separation Wedge Wire Screen Cylinder Filter | Material: | Stainless Steel 304 |
---|---|---|---|
ID: | 255mm | Length: | 602mm |
Slot: | 0.75mm | Wire Size: | 2*4mm Vee Wire |
Support Rod: | 3*5mm Vee Wire | Distance Of Rods: | 12mm |
Filter Type: | FITO | Reinforce: | 15*15 Bar |
High Light: | separation reverse wedge wire screen,wet dry separation wedge wire filter,id 255mm reverse wedge wire screen |

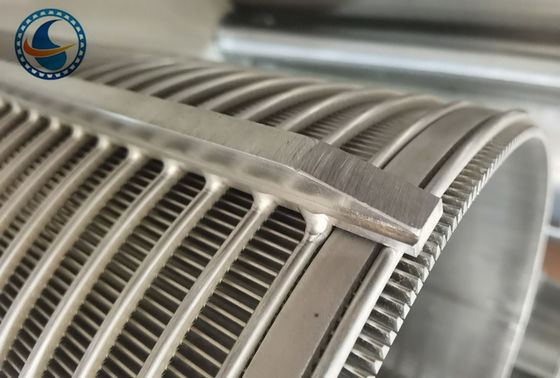

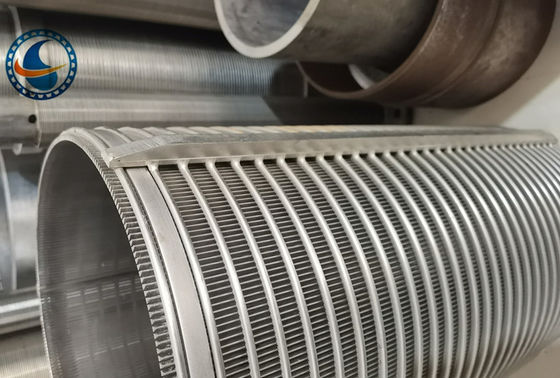

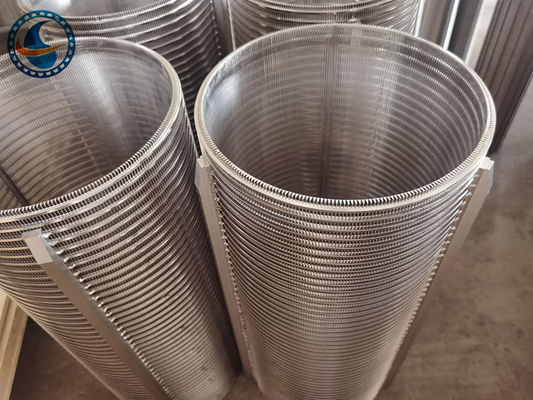

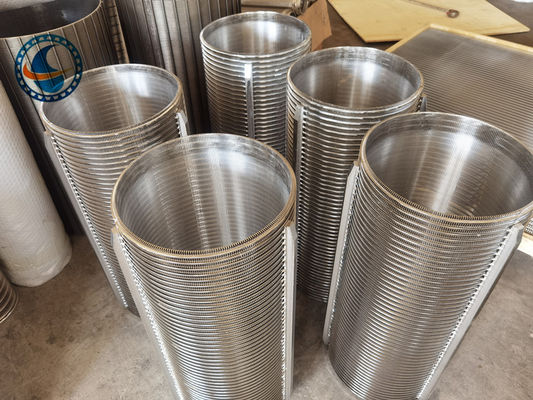

Stainless Steel Wet And Dry Separation Wedge Wire Screen Cylinder Filter also known as wedge screen filter, Johnson filter, wire winding screen, winding filter, wire wrapped screen.
Wedge filter structure is upper and lower port argon arc welding flange plate, the middle cylinder body is welded by stainless steel wedge wire screen, filtration accuracy of 25-800μ, is welded by stainless steel wedge wire and support bar, mainly filter plate, filter blue, filter core and other products.
1. High strength, high hardness, strong durability;
2. Uniform gap, larger effective circulation area;
3. Greater variables;
4. Anti-blocking design.
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
Type of end connection |
29,38,57,63,76,89,108, 150,168,320,600 etc |
500,1000,2000 etc
|
0.05,0.1,0.25,0.5,1.0 etc |
Welded rings, male/female threaded coupling, flange,closed up and so on |
Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm. |
Custom Designed
High Strength
Drilled Hole
Machine Slot
Wedge wire
Increased open area
Better Fiber retention
Increased effluent clarity
Kinds of materials
