| Name: | Johnson Type Continuous Slot Water Well Screen | Material: | Stainless Steel |
|---|---|---|---|
| Length: | 5800mm | Diameter: | 8-5/8" |
| Slot Size: | 1.0mm | Wire: | 3*4.6mm Vee- Wire |
| Support Rod: | ø4.0mm Round Wire | End Connection: | Bevel Welded Rings |
| Use: | In Water Well For Sand Control | Size: | Can Be Customized |
| High Light: | continuous slot johnson wire screen,water well johnson wire screen,8-5/8" diameter continuous slot screen |
||
1. The application of trapezoidal wire, the Formation of V-shaped openings between the gaps of Johnson screen tube. The design works more efficiently than other products and ensures smooth water filtration.
2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire arranged in a circular manner, which ensures the opening area of the Johnson type continuous slot water well screen and no obstruction, and avoids the high-density accumulation of sediment, which provides a guarantee for improving the production efficiency and prolongating the service life of the filter.
3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.
4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.
1. Johnson Type Continuous Slot Water Well Screen can be customized according to the actual needs of customers with different specifications and raw materials (mainly stainless steel and carbon steel), so as to ensure reasonable investment and save production costs.
2. Johnson Type Continuous Slot Water Well Screen joint can also be made according to different needs.

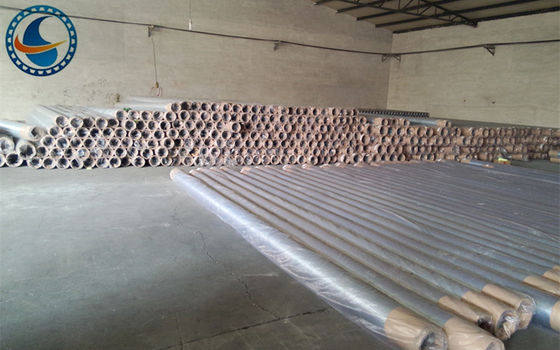

Packaging can be made according to customer needs.
3. Non-stainless steel Johnson Type Continuous Slot Water Well Screen can be galvanized to form a protective layer. Appearance beautiful and clean.
4. High precision filtration, stable outlet water quality, suitable for different raw water quality and water requirements.
5. Johnson Type Continuous Slot Water Well Screen is widely used in power plant equipment, petroleum, pharmaceutical chemical industry, coal, metallurgy, papermaking, food and beverage, beer production, environmental protection and other industries of recharge water, condensed water and other industrial water treatment filtration and supporting.
6. The advantages of Johnson Type Continuous Slot Water Well Screen improve the work efficiency and service cycle of the filter, making the product a leader in water resource filtration equipment.
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
