201 Stainless Steel Profile Reusable 25u Reverse Wedge Wire Screen Filter Element

Large Image : 201 Stainless Steel Profile Reusable 25u Reverse Wedge Wire Screen Filter Element

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number:	HY092005

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 50-200 per piece
Packaging Details:	Wooden box
Delivery Time:	5-8 work day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	More than 20 PCS per day

Contact Now

Detailed Product Description

Name:	Profile Wedge Wire Reusable Screen Filter Element	Material:	Stainless Steel
OD:	300mm	Length:	500mm
Slot:	0.3mm	Wire Size:	1.5*2mm Vee Wire
Support Rod:	2*3mm Vee Wire	Distance Of Rods:	20mm
Ends:	No Ends	Filter Type:	FITO
Surface:	Acid Washing	Package:	Wooden Box
Highlight:	0.3mm slot wedge wire screen pipe , 25u reverse wedge wire screen , 201 stainless reverse wedge wire screen

201 Stainless Steel Profile Reusable 25u Reverse Wedge Wire Screen Filter Element

Product Specifications

Attribute	Value
Name	Profile Wedge Wire Reusable Screen Filter Element
Material	Stainless Steel
OD	300mm
Length	500mm
Slot	0.3mm
Wire size	1.5*2mm Vee wire
Support rod	2*3mm Vee wire
Distance of rods	20mm
Ends	No ends
Filter type	FITO
Surface	Acid washing
Package	Wooden box

Product Description

Profile Wedge Wire Reusable Screen Filter Element also known as Johnson screen, wedge wire screen filter, Johnson filter, wound screen, wire wrapped screen, wire winding screen.

Wedge wire screen filter structure is upper and lower port argon arc welding flange plate, the middle cylinder body is welded by stainless steel wedge wire screen, filtration accuracy of 25-800μ, is welded by stainless steel wedge wire and support bar, mainly filter plate, filter blue, filter core and other products.

Applications

Gas and Oil Industries

Production of fuel and lubricants
Desulphurization
Drying of natural gas
Regeneration of catalysts
Catalytic reactors
Protection of fittings and compressors

Chemical Industry

Processing of paint and coating
Processing of chemicals
Processing of polymers
Purification of potassium
Purification of phosphates

Food Industry

Extraction
Fluidized beds
Absorption
Adsorption
Sorting
Drying

Standard Sizes

Outside Diameter (mm)	Length (mm)	Slot (mm)	Type of end connection
29,38,57,63,76,89,108,150,168,320,600 etc	500,1000,2000 etc	0.05,0.1,0.25,0.5,1.0 etc	Welded rings, male/female threaded coupling, flange, closed up and so on

Besides above of the specification screen pipe, we also can act according to the customer's request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm.

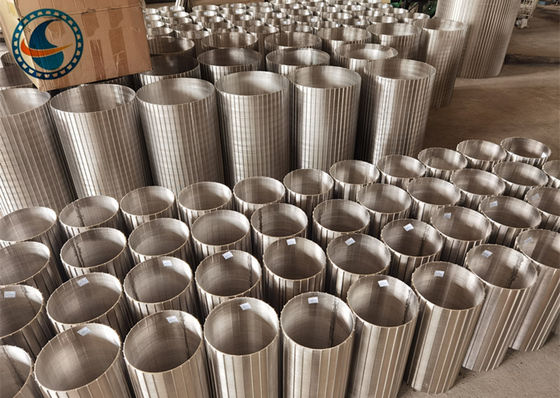

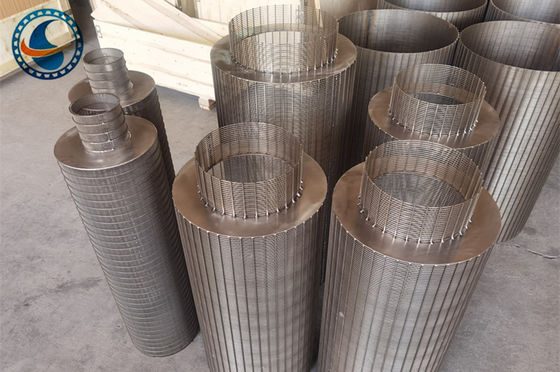

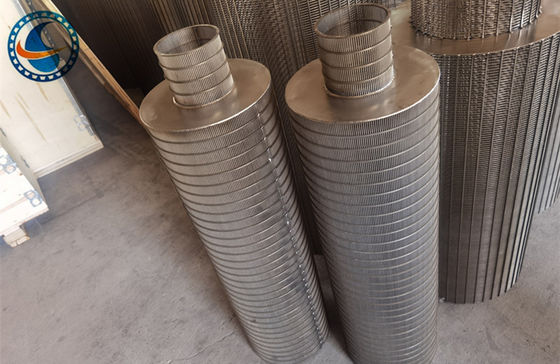

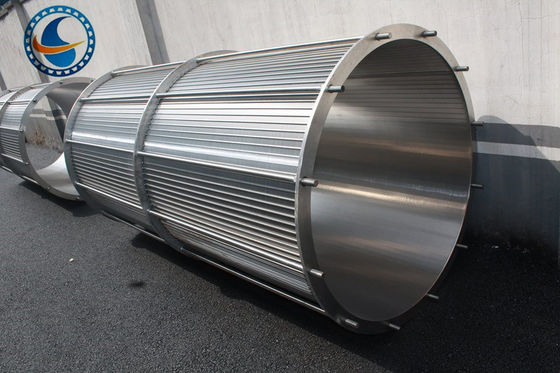

Product Images
