| Name: | Vee-Shaped Profile Johnson Wire Screen Pipe | Material: | Stainless Steel |
|---|---|---|---|
| Diameter: | 60mm | Length: | 1000mm |
| Slot Size: | 0.1mm | Wire: | 1*2mm |
| Support Rod: | 2*3mm | Surface: | Polished |
| One End: | Open Ends | Hole Shape: | Vee-shaped |
| Package: | Wooden Box | Use: | Filtration |
| High Light: | diatomite filtration wedge wire pipe,diatomite filtration johnson screen pipe,vee shaped profile johnson screen pipe |
||

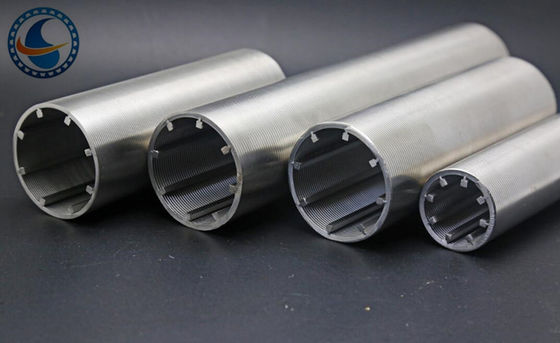

Vee-Shaped Profile Johnson Wire Screen Pipe is received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction. This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.
Thanks to the newest welding technology we can provide:
1. Optional distance between support wires
2. Very precise and repeatable slot
3. Screens in accordance to special requests of our clients
1. Keystone design for self cleaning and maximum flow optimizing productivity
2. Various wire shapes and slot sizes for specific requirement
3. Corrosion and erosion resistant
4. Easy and fast installation minimizing product lead times
5. Virtually maintenance-free
| Name | Vee-Shaped Profile Johnson Wire Screen Pipe |
| Material | Stainless steel 304, 304L, 316L and 321 etc. Duplex steel 2205, 2507 etc. |
| Profile Wire |
1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm, 3*4.6mm, 3*5mm, 3*6mm, 4*7mm |
| Support rods | Except for Vee-shaped wire, Support rods also can be ø2.5mm to ø6.0mm round wire |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |
