Product Details:
Payment & Shipping Terms:
|
| Name: | Johnson Water Well Screen | Material: | Non-magnetic Stainless Steel |
|---|---|---|---|
| Diameter: | 8" (219mm) | Length: | 3000mm |
| Slot Size: | 1.5mm | Wire: | 3*5mm Vee- Wire |
| Support Rod: | ø4.0mm Round Wire | End Connection: | Bevel Welded Rings |
| Use: | In Water Well For Sand Control | Size: | Can Be Customized |
| Weight: | 51.5KG | Package: | Air Bubble Film |
| High Light: | 8" ss johnson water well screen,sand control johnson water well screen,non magnetic johnson well screen |
||

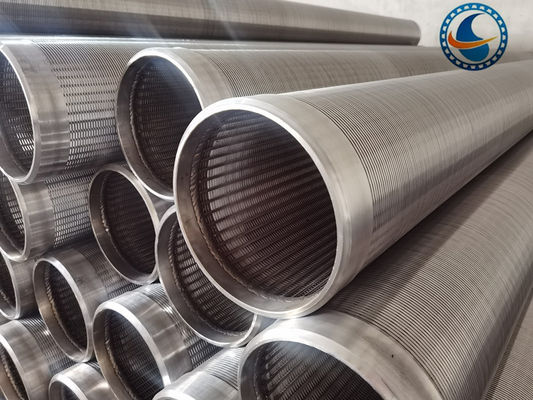

Johnson Water Well Screens are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction.
This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.
Material: mainly stainless steel, Non-magnetic stainless steel, Low carbon galvanized,or other materials required by customers.
Application environment: it is suitable for gravel filling sand control in most Wells such as vertical Wells, inclined Wells and directional Wells.
Connection type: Bevel welded rings or male/female threaded connection.
Use: For water well yield, not easy to sand, well and mining comprehensive cost bottom.
Full-welding Johnson water well screen is made of triangle (Vee-shaped) stainless steel wire (or carbon steel wire cross welding, high welding strength, good filtration effect, not easy to plug is chemical, mining, petroleum, paper making, water Wells, water treatment equipment, sugar, wine and other industries of filtration equipment.
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Except for these regular specification, we can also make any other sizes as clients request.
