Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings

Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings
Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings

Large Image :  Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings

Product Details:
Place of Origin: Hengshui city,Hebei,China
Brand Name: Heng Yuan
Certification: ISO,CIQ,CE, FORM E etc
Model Number: HY092503
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Air bubble film in 20GP container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Wire Wrapped Screen Material: AISI 304
Diameter: 8-5/8" (219mm) Length: 3000mm
Slot Size: 1.0mm Wire: 3*4.6mm Vee- Wire
Support Rod: ø3.8mm Round Wire End Connection: Bevel Welded Rings
Use: In Water Well For Sand Control Size: Can Be Customized
Weight: 52KG Package: Air Bubble Film
High Light:

aisi 304 wire wrapped screen

,

bevel welded rings wire wrapped screen

,

aisi 304 johnson wire screen

AISI 304 Wire Wrapped Screen With High Strength Bevel Welded Rings



Wire Wrapped Screen Structure:



Wire Wrapped screen is made up of rod and VEE- wire wrapped around on advanced inverter welding equipment made in welding, solder joint strength is high, uniform crack, corrosion resistance is strong, effective filter has big filter area, good seepage, simple structure, cracks in 0.05 millimeter above, can be arbitrarily selected by the user, according to user needs, can supply alone.



Material: mainly stainless steel, Non-magnetic stainless steel, Low carbon galvanized,or other materials required by customers.

Application environment: it is suitable for gravel filling sand control in most Wells such as vertical Wells, inclined Wells and directional Wells.

Connection type: Bevel welded rings or male/female  threaded connection.

Use: For water well yield, not easy to sand, well and mining comprehensive cost bottom.



Wire Wrapped Screen Features:



Full-welding wire wrapped screen is made of triangle (Vee-shaped) stainless steel wire (or carbon steel wire cross welding, high welding strength, good filtration effect, not easy to plug is chemical, mining, petroleum, paper making, water Wells, water treatment equipment, sugar, wine and other industries of filtration equipment.



Wire Wrapped Screen Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Except for these regular specification, we can also make any other sizes as clients request.

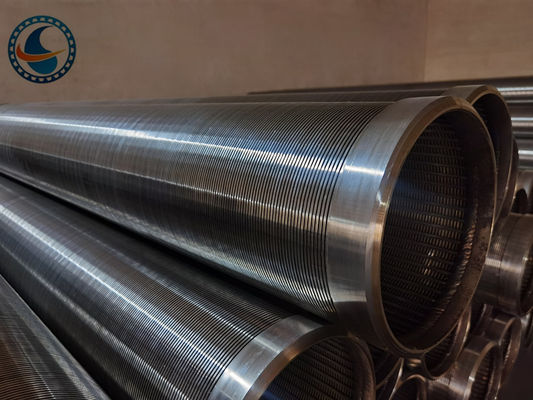

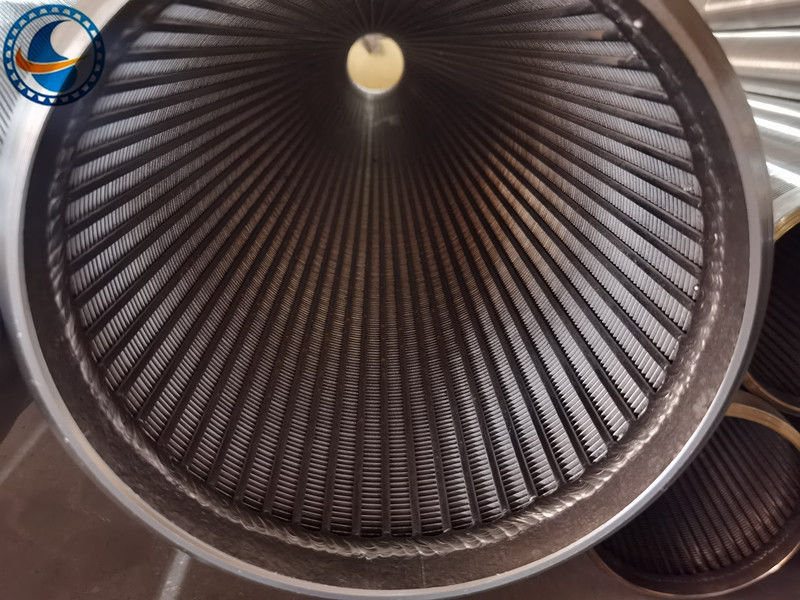

Wire Wrapped Screen Pictures:

Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings 0Aisi 304 Wire Wrapped Screen With High Strength Bevel Welded Rings 1
