Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe

Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe
Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe

Large Image :  Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe

Product Details:
Place of Origin: Hengshui city, Hebei, China
Brand Name: Hengyuan
Certification: ISO, CIQ,CE, SGS
Model Number: HY102401
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 150 meters per day
Detailed Product Description
Name: Johnson Well Screen Pipe Material: Stainless Steel
Diameter: 6-5/8" (168mm) Slot: 1.0mm
Length: 2.9 Meters Wrap Wire: 3*4.6mm Vee-shaped Wire
Support Rod: ø4.0mm Round Wire NO. Of Rods: 32 PCS
End Connection: Welded Rings Surface: Polished
High Light:

ss304 johnson wire screen

,

6-5/8" johnson wire screen

,

downhole slotted vee wire screen tube

Stainless Steel 304 Drilling Well 6-5/8" Johnson Well Screen Pipe



Johnson Well Screen Pipe Introduction​:



Hengyuan Johnson Well Screen Pipe also be named Water well screen,Johnson screen,Wedge wire screen,Vee-Wire screen pipe,Rod based continuous slot Vee-wire screen tube,Wound screen,Water filter, Screen cylinders, slot wire screen tube , well screen , strainer screens,oil screen tube etc



Johnson Well Screen Pipe is made up of Vee-shaped wrapped wire and round rod in each intersection welded together.

Accurate slot and high filtration precision.



Johnson Well Screen Pipe Normal Sizes:



   Outside Diameter

        (mm)

      Length

     (mm)

      Slot

   (mm)

   End connection

2", 3", 4", 5", 6",8", 9", 10", 12", 14", 16" 2900,5800 in usual 0.5, 0.63, 0.75,1.0

Welded rings, male/female threaded coupling,flange,closed up etc.



Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ¢ 29mm- ¢ 1300mm, the length from the 100mm-6000mm series screen pipe



Johnson Water Well Sand Control Screen Tube Advantages:


1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.


2.A V shaped profile wire which avoids clogging and ensures an uninterrupted flow.


3.A uniform and efficient well development due to the continuous slot opening.


4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.


5.Ladder-like wire welded screens have the features of easy back washing, last long, safety and reliability as well as low comprehensive cost.

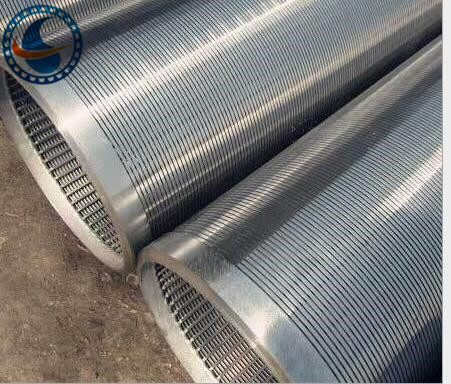

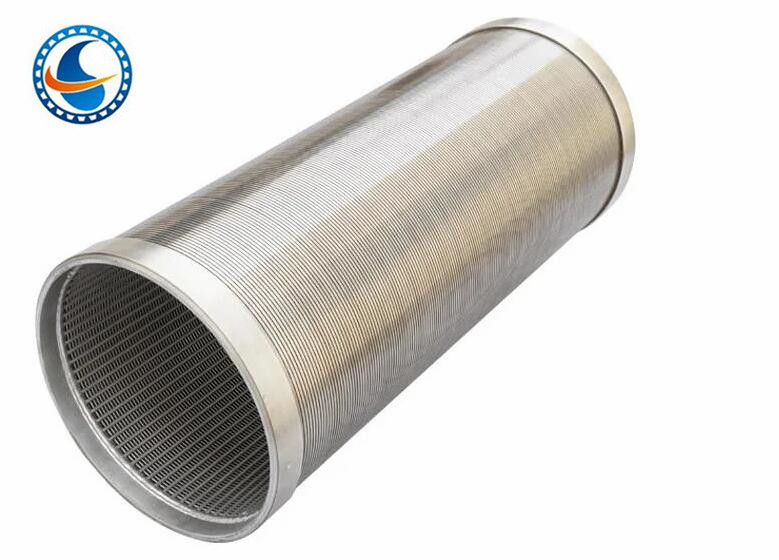

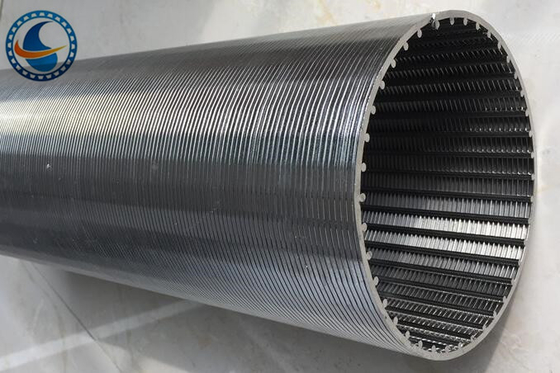

Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe 0Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe 1

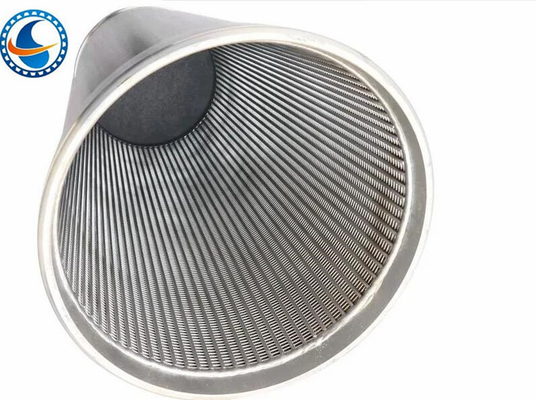

Ss304 Drilling Well 6-5/8" Johnson Wire Screen Pipe 2
