Duplex Steel 2507 Continuous Slot Wedge Wire Pipe

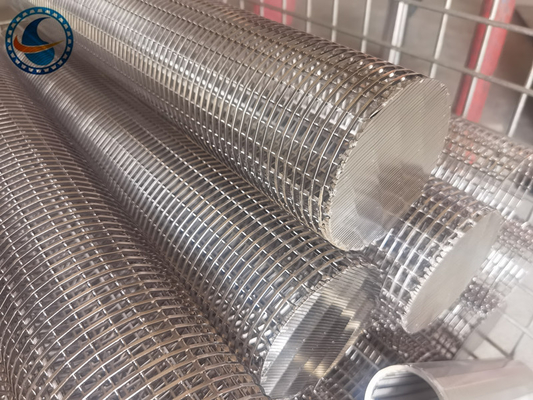

Large Image : Duplex Steel 2507 Continuous Slot Wedge Wire Pipe

Product Details:

Place of Origin:	Hengshui City,Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO,CIQ,CE, FORM E etc
Model Number:	HY102405

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Vee Wedge Wire Continuous Slot Cylinder Tube	Material:	Duplex Steel 2507
Diameter:	110mm	Length:	600mm
Slot Size:	5.0mm	Wire:	2*3mm
Support Rod:	2*3mm	Package:	Wooden Box
Ends:	Only One End With Wedge Wire Screen Plate	Hole Shape:	Vee-shaped
Highlight:	continuous slot wedge wire pipe , duplex steel 2507 wedge wire pipe , duplex 2507 wedge wire screen pipe

Duplex Steel 2507 Continuous Slot Wedge Wire Pipe

Product Specifications

Attribute	Value
Name	Vee Wedge Wire Continuous Slot Cylinder Tube
Material	Duplex Steel 2507
Diameter	110mm
Length	600mm
Slot size	5.0mm
Wire	2*3mm
Support rod	2*3mm
Package	Wooden box
Ends	Only one end with wedge wire screen plate
Hole shape	Vee-shaped

Product Description

Vee Wedge Wire Continuous Slot Cylinder Tubes are used in many areas of food production, especially in the production of beverages and semiliquid products such as syrup and jam.

These tubes are also used for preparation of process water. A lot of attention is given to the precision of the slots and - to the extent required - on the roundness of the candles, giving your process the required security and reliability.

Technical Specifications

Feature	Options
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire	1.02.0mm, 1.52.0mm, 1.52.5mm, 23mm, 2.33.5mm, 2.24mm, 2.24.5mm, 34mm, 3*4.6mm etc.
Support Rods	23mm, 34mm, 34.6mm, 35mm, 36mm, 47mm
Round	From 2.5mm to 6.0mm
Slot Size	0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meter
Pipe diameter	25mm to 1300mm
Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.

Key Advantages

Optional distance between support wires
Very precise and repeatable slot
Screens in accordance to special requests of our clients
Manufactured using newest welding technology
