| Name: | Wedge Wire Screen | Material: | Stainless Steel 304 |
|---|---|---|---|
| ID: | 255mm | Length: | 551mm |
| Slot: | 0.8mm | Wire Size: | 1.5*2.5mm Vee Wire |
| Support Rod: | 3*5mm Vee Wire | Distance Of Rods: | 17mm |
| Filter Type: | From Inside To Outside | Surface: | Acid Washing |
| High Light: | ss304 self cleaning wedge wire screen,welded self cleaning wedge wire screen,ss 304 welded wedge wire screen |
||

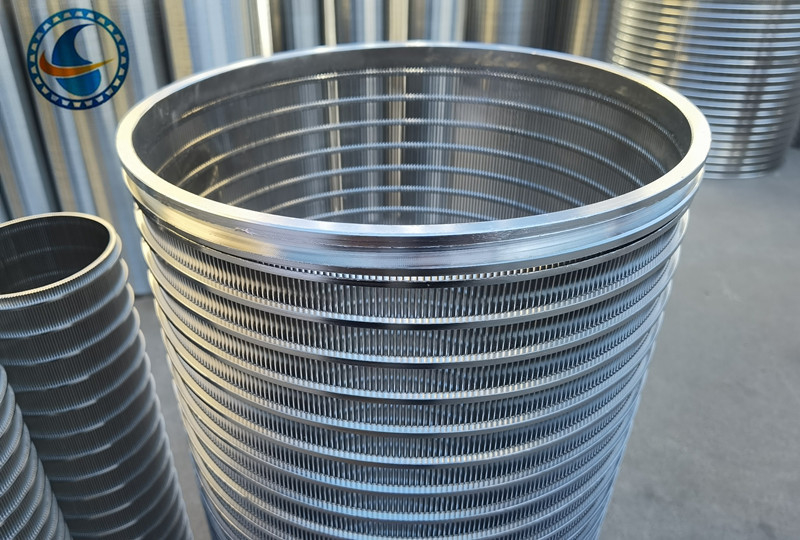

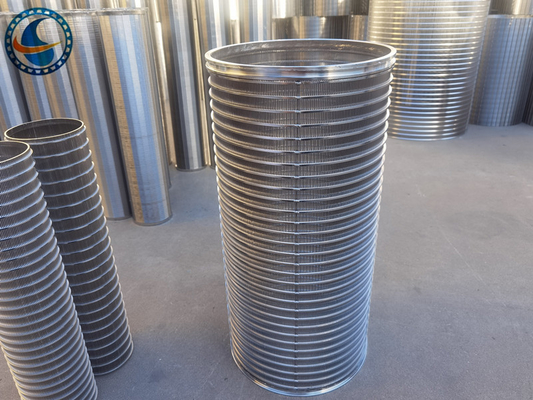

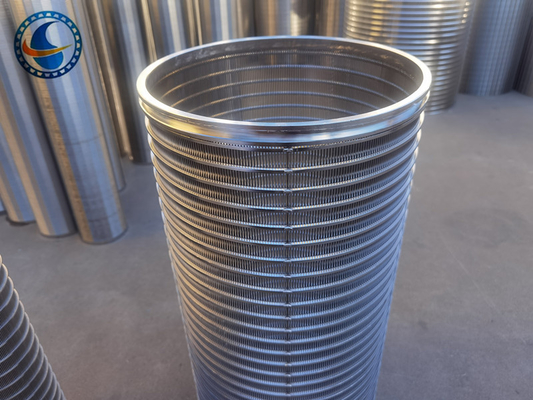

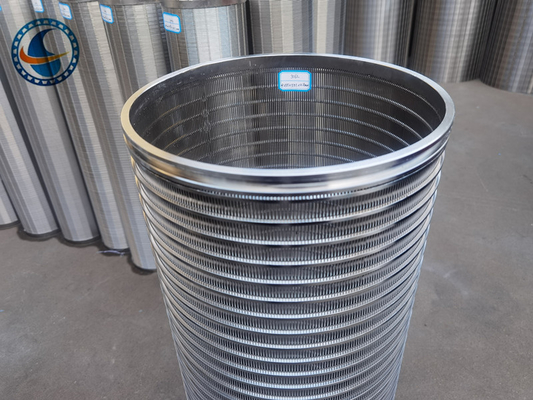

Stainless Steel Wedge Wire Screen is produced through the method of electric resistance welding, wires with special profiles are welded to supporting wires at 90 degrees.
The distance between the surface profiles is controlled very accurately as it forms the slot through which the filtrate flows.The working surface is 100% smooth which eliminates blinding and pegging.
Wedge Wire is characteristic of accurate cut size and precise gap (aperture) required with the ability to carry heavy loads.
The direction of the flow is determined by the position of the surface profiles in relation to the support profiles.
Wedge wire screens are either flow-out-to-in OR flow-in-to-out.
|
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
Type of end connection |
|
29,38,57,63,76,89,108, 150,168,320,600 etc |
500,1000,2000 etc
|
0.05,0.1,0.25,0.5,1.0 etc |
Welded rings, male/female threaded coupling, flange,closed up and so on |
|
Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø25mm-ø1300mm. The length from the 100mm-6000mm. |
||
