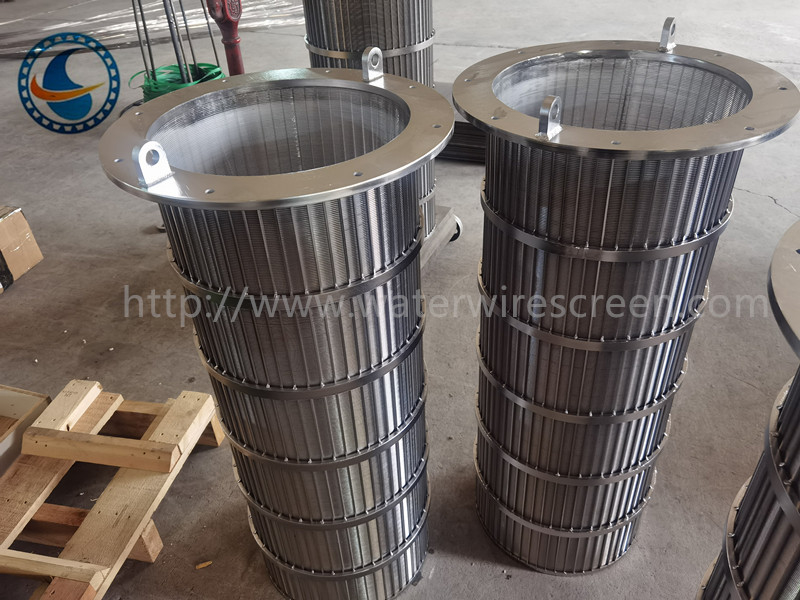

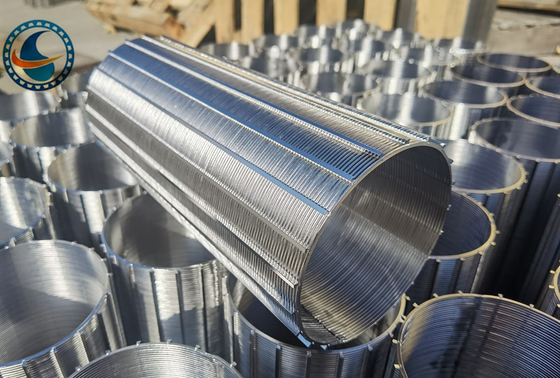

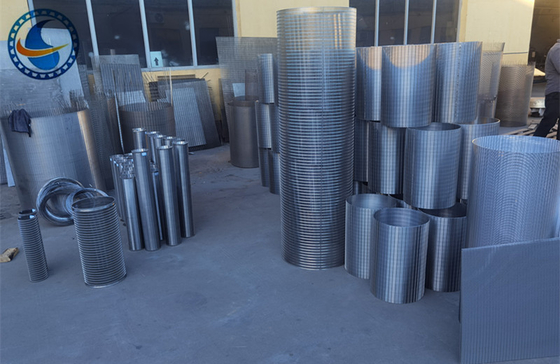

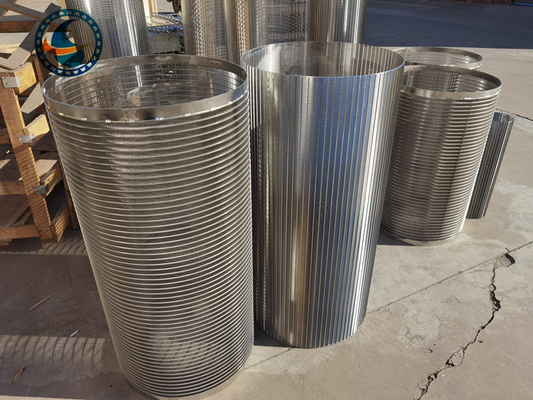

Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm

Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm
Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm

Large Image :  Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number: HY122009
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD 50-200 per piece
Packaging Details: Wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: More than 20 PCS per day
Detailed Product Description
Name: Continuous Slot Wedge Wire Screen Material: Duplex Steel 2507
ID: 300mm Length: 800mm
Slot: 0.5mm Wire Size: 3*5mm Vee Wire
Support Rod: 3*5mm Vee Wire Distance Of Rods: 17mm
Filter Type: From Inside To Outside Surface: Acid Washing
High Light:

duplex steel 2507 wedge wire screen

,

continuous slot wedge wire screen

,

id 300mm wedge wire screen

Duplex Steel Continuous Slot Wedge Wire Screen



Testing of Duplex Steel 2507 Continuous Slot Wire Wrapped Screen:



First, we will inpsect strictly the chemical component and physical performance of raw materialsand and then load them into warehouse.



Second, our inspector will check the whole procedure. Unqualified screens will be abandoned during the production.



Third, before packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.



Fourth, we have professional inspectors to inspect the loading into container to avoid damage during the transportation.



Wedge Wire Screen Normal Sizes:



Outside Diameter

(mm)

Length

(mm)

Slot

(mm)

Type of end connection

29,38,57,63,76,89,108,

150,168,320,600 etc

500,1000,2000 etc



0.05,0.1,0.25,0.5,1.0 etc

Welded rings, male/female threaded coupling,

flange,closed up and so on



Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø25mm-ø1300mm. The length from the 100mm-6000mm.





Advantages of Continuous Slot Wedge Wire Screen:



1. Non-clogging construction: The v-shaped wires and support rods is welded together by automatic resistance welding, which ensures a two- point contact between the particles and the slot,which minimizes clogging of near size product.



2. Strong construction: for most applications the wedge wire is self-supporting because of the welding at each intersection and can therefore withstand high pressure(Psi) and heavy loads.



3. Smooth Surface Filtration: very good smooth filtration surface, which reduce mechanical wear.



4. High-precision slot opening: Minimum Slot opening is 20 microns.



Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm 0Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm 1

Duplex Steel 2507 Wedge Wire Screen Continuous Slot Id 300mm 2
