|Name:||Wedge Wire Profile Wire Screen Pipe||Material:||Stainless Steel|
|Package:||Wooden Box||Filter Type:||From Outside To Inside|
sus wedge wire screen tube,
ss 321 wedge wire screen pipe,
slot 40mm wedge wire screen pipe

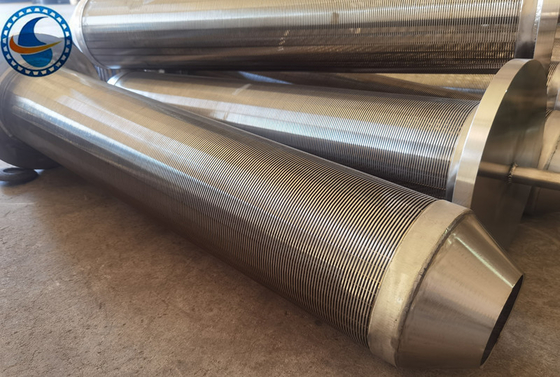

Wedge Wire Profile Wire Screen Pipe is made of a screen strip and a support strip (support strip). The wire screen is generally a triangular wire, and the support bar may be a round wire, a triangular wire, a trapezoidal wire or a square steel.
The profile wire are triangular wires (V-shaped wires).
The profile wire is also called a wrap wire, and the profile wire of Wedge Wire Screen tube product is wound by a sieve bar and finished to form a screen.
|Wedge Wire Profile Wire Screen Pipe|
|Material||Stainless steel 304, 304L, 316L and 321 etc.|
1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
|Support Rods||2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm|
|Round||From 2.5mm to 6.0mm|
|Slot Size||0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc|
|Pipe Length||Max 6 meter|
|Pipe diameter||25mm to 1300mm|
|Screen Ends||Plain Beveled ends, male/female threaded, flange or close up.|
1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5. Long live: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
