Product Details:
Payment & Shipping Terms:
|
| Grade: | SS316L | Wire Size: | 1.5*2 |
|---|---|---|---|
| Support Rod: | 2*3 | Slot: | 0.5mm |
| End Connection: | Flange / Required / Nothing | Length: | As Your Requiremens |
| Inner Diameter: | 60-1300mm | Usage: | Liquid Filter,Filtration&Separator |
| Hole Shape: | V-shape | ||
| High Light: | stainless steel 316l wedge screen filter,back washing wedge screen filter |
||

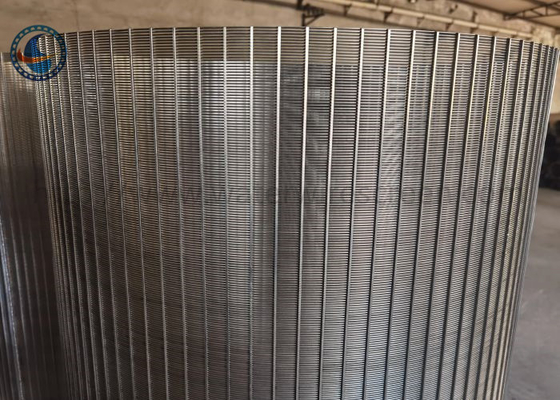

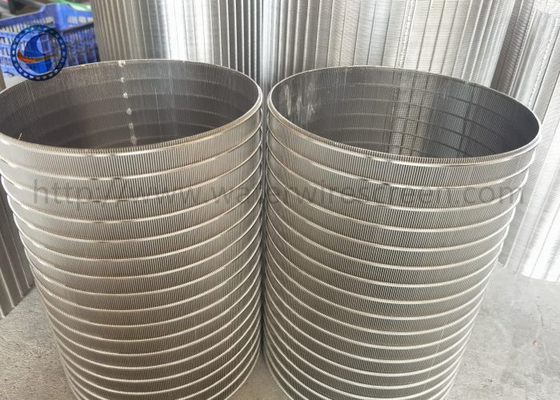

Stainless Steel 316 L Reverse Wedge Johnson Drum Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
Reverse Wedge Wire Screen Filter type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
Reverse Wedge Wire Screen Feature:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
The wedge mesh filter core is welded with stainless steel wedged wire.
The filtration precision is 0.02mm-1000mm.
The wedge-shaped wire mesh screen is welded by the stainless steel wedged wire and the support strip, mainly including filter plate, filter basket, filter core and so on.
| certification: | custom-made | Brand: | HengYuan |
| Properties: | long service life | use: | screening |
| Type: | wire wound filter | Material: | Metal wire mesh |
| Scope of application: | filter applicable | object | liquid |
| Working temperature: | 10-800 C | maximum working pressure difference: | 10-100MPa |
| Filtering accuracy: | 1-200 mu | ||
| Raw water pressure: | 0.2-10KG/c | filter area: | 100-1000mm |
| Model: | a variety of | specifications: | a variety of |
| Trade mark: | NO | packing: | by sea |
| Output: | 10000 |
Reverse Wedge Wire Screen Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
Reverse Wedge Wire Screen Basic Parameters :
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
