Product Details:
Payment & Shipping Terms:
|
| Grade: | SS 304 | Wire Size: | 1.5*2.5 |
|---|---|---|---|
| Support Rod: | 2*3 | Slot: | 0.75mm |
| End Connection: | Flange / Required / Nothing | Inner Diameter: | 40-1300 Mm |
| Usage: | Liquid Filter | Hole Shape: | Slot |
| Length: | 880mm | ||
| High Light: | v slot johnson wedge wire screens,centrifuge filtration johnson wedge wire screens,wedge wire filter stainless steel 304 |
||

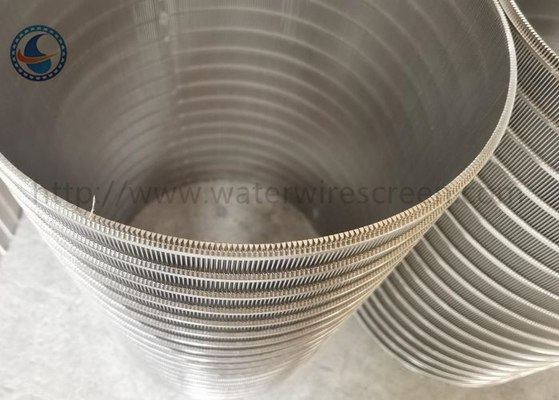

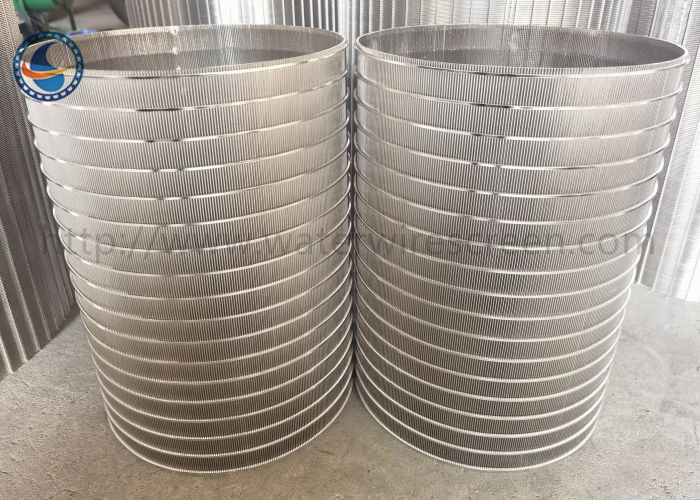

Stainless Steel 304 Reverse V Slot Wedge Wire Drum Screen For Centrifuge Filtration is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note |
All sizes are all customized, according to your requirement
|
||||||
Reverse V Slot Wedge Wire Drum Screen is widely used in oil, gas and water wells for sand prevention and its application in chemical industry, environmental protection and other industries.
It is the most widely used filter screen in all kinds of oil, water resources recycling and resin collection.
The world's most advanced full wound welding process in the world is adopted by the Johnson Vee-shaped wire winding screen.
The special stainless steel trapezoid (wedge-shaped) wire winding is welded on a group of longitudinal support rods arranged in a round round arrangement, thus ensuring its strength and service life.
Due to the adoption of full program welding, not only the strict integrity of the product is ensured, but also the ideal gap size is formed. Compared with the commonly used welding technology in China, the full welded wedged wire winding screen tube, filter pipe, water cap, water distributor, resin trap and sieve plate have the characteristics of smooth tube surface, no production edge angle, no burr, uniform gap and no grease leakage.
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
