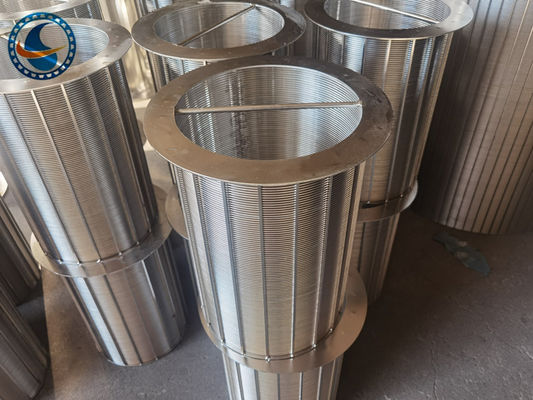

Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket

Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket
Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket

Large Image :  Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: CE,ISO,CIQ,CO,FORM E,CCPIT etc.
Model Number: ID:60-1300mm
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD 50-200 per piece
Packaging Details: Wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: More than 20 PCS per day
Detailed Product Description
Grade: SS 304 Wire Size: 63#
Support Rod: 93# Slot: 0.25mm

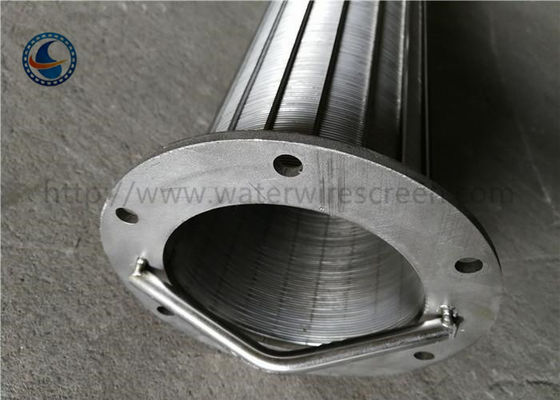

End Connection: Flange And Handle Inner Diameter: 215 Mm
Usage: Liquid Filter Hole Shape: Slot
Length: 550 Mm
High Light:

reverse wedge wire filter screen

,

v slot wedge wire filter screen

Reverse V Slot Wedge Wire Drum Screen With Handle Filter Basket



Reverse V Slot Wedge Wire Drum Screen With Handle Filter Basket is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer). A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow. A uniform and efficient well development due to the continuous slot opening. Reverse wound screen can be backwashed, less clogging and longer filter life



Reverse V Slot Wedge Wire Drum Screen Basic Parameters :

Gap (mm) : 0.02, 0.025, 0.03, 0.04, 0.05, 0.06, 0.08, 0.10, 0.15, 0.2, 0.25, 0.30-35, can also be made according to customer requirements

Material: low carbon steel, low carbon steel galvanized, plastic sprayed, stainless steel (304, 316L, Hastelloy, etc.)

Length: 50 mm - 6000 mm

Outer diameter: 25 mm - 1270 mm

Connection type: groove connection or thread connection, direct pipe head or threaded pipe head

Screen specifications: conventional 0.75*1.5mm, 1*2mm, 2*3mm, 2.3*3mm, 3*5mm

The characteristics of:

Reverse V Slot Wedge Wire Drum Screen is widely used in oil, gas and water wells for sand prevention and its application in chemical industry, environmental protection and other industries.



It is the most widely used filter screen in all kinds of oil, water resources recycling and resin collection.
The world's most advanced full wound welding process in the world is adopted by the Johnson Vee-shaped wire winding screen.



The special stainless steel trapezoid (wedge-shaped) wire winding is welded on a group of longitudinal support rods arranged in a round round arrangement, thus ensuring its strength and service life.


Due to the adoption of full program welding, not only the strict integrity of the product is ensured, but also the ideal gap size is formed. Compared with the commonly used welding technology in China, the full welded wedged wire winding screen tube, filter pipe, water cap, water distributor, resin trap and sieve plate have the characteristics of smooth tube surface, no production edge angle, no burr, uniform gap and no grease leakage.





Reverse V Slot Wedge Wire Drum Screen​ type:



From inside to outside. Wire, Inside; Support rod, Outside.

1. Wire is the length of the screen pipe;

2. Support rod is the length of the screen pipe.



The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.







Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket 0

Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket 1Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket 2Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket 3Reverse V Slot Wedge Wire Filter Screen With Handle Filter Basket 4
