Id 100mm Reverse Rolled Wedge Wire Screen Filter 304 Stainless Steel

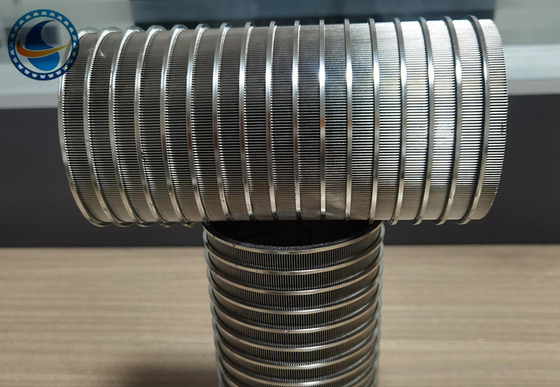

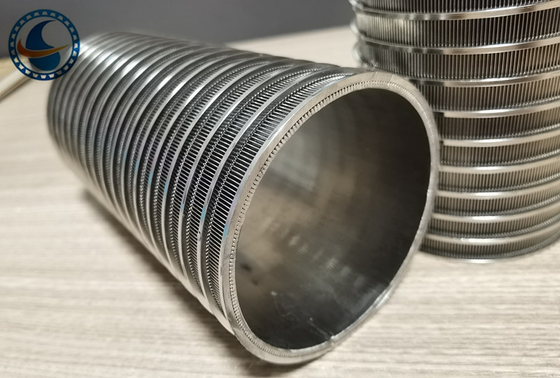

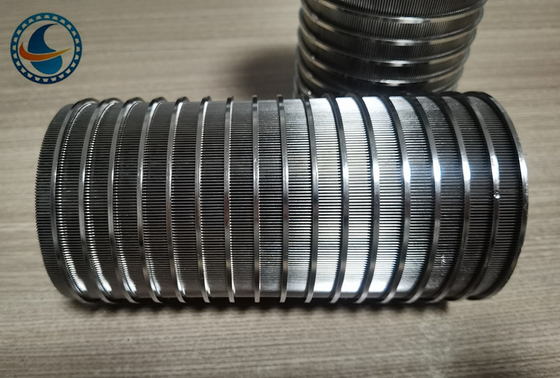

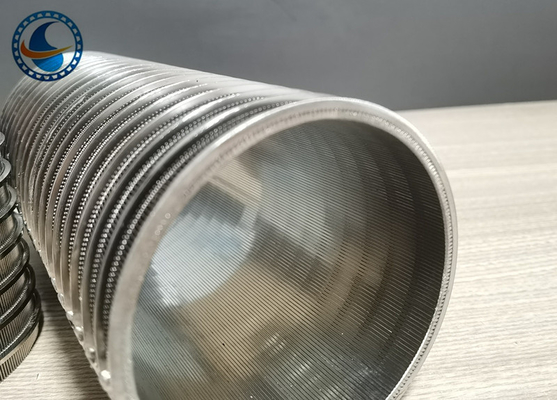

Large Image : Id 100mm Reverse Rolled Wedge Wire Screen Filter 304 Stainless Steel

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE,ISO,CIQ,CO,FORM E,CCPIT
Model Number:	HY012501

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD 50-200 per piece
Packaging Details:	Wooden box
Delivery Time:	5-8 work day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	More than 20 PCS per day

Contact Now

Detailed Product Description

Name:	Reverse Rolled Wedge Wire Screen Filter	Material:	Stainless Steel 304
ID:	100mm	Length:	250mm
Slot:	0.15mm	Wire Size:	1*2mm Vee Wire
Support Rod:	2*3mm Vee Wire	Distance Of Rods:	10mm
Filter Type:	From Inside To Outside	Surface:	Acid Washing
Highlight:	reverse rolled wedge wire screen filter , id 100mm wedge wire screen filter , 304 stainless steel wedge wire filter

100mm Reverse Rolled Wedge Wire Screen Filter 304 Stainless Steel

Product Specifications

Attribute	Value
Name	Reverse Rolled Wedge Wire Screen Filter
Material	Stainless Steel 304
ID	100mm
Length	250mm
Slot	0.15mm
Wire size	1*2mm Vee wire
Support rod	2*3mm Vee wire
Distance of rods	10mm
Filter type	From Inside To Outside
Surface	Acid washing

Product Description

Reverse Wedge Rolled Wire Screen Tube, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The reverse rolled wedge wire screen tube is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

Types of Reverse Rolled Wedge Wire Screen Tube

Reverse Rolled Wedge wire screen tube has various different types, according to the different standard:

Normal Type: Has continuous and regular angles on the edge. Economical and suitable for applications where accuracy is not very strict.
Perfect Round Type: Produced by strict standard with better filtering accuracy. Can be used in precise machines for arduous filtering tasks.

Standard Sizes

Outside Diameter (mm)	Length (mm)	Slot (mm)	Type of end connection
29,38,57,63,76,89,108,150,168,320,600 etc	500,1000,2000 etc	0.05,0.1,0.25,0.5,1.0 etc	Welded rings, male/female threaded coupling, flange, closed up and so on

Besides above of the specification screen pipe, we can also manufacture according to customer's request. Diameter: ø29mm-ø1300mm. Length: 100mm-6000mm.
