Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 | Slot Size: | 0.1/ 0.5/ 0.7/ 1.0/ 1.5/ 2.0mm |
|---|---|---|---|
| Application: | Filters | Type: | V Wire Wrapped Screen |
| Length: | 100-6000mm Can Be Made | Wire Shape: | V Shape |
| End Connection: | Thread Couplings | Usage: | Liquid Filter,screen |
| High Light: | sand control v wire screen filter,0.1mm slot wire wrapped screen,waterwell sand control wire wrapped screen |
||

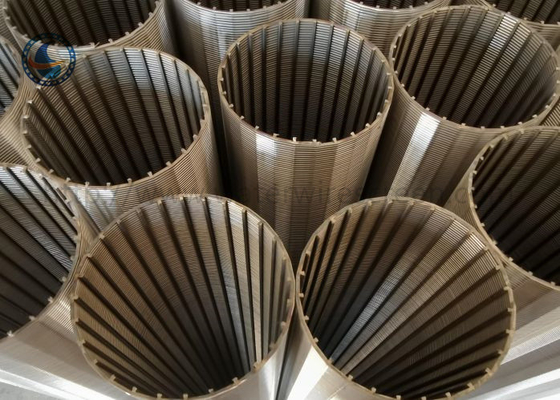

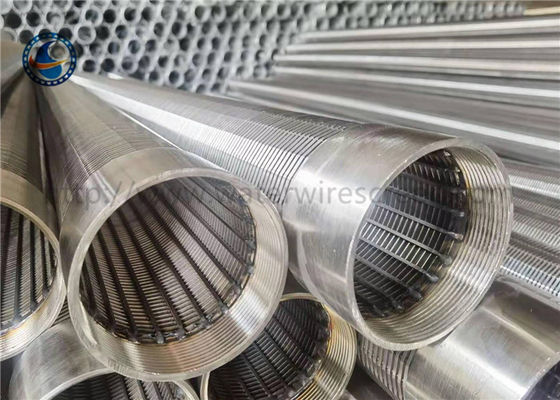

Johnson V Wire Wrapped Screen Tube For Water Well Sand Control is composed of V-shaped wire and support bars. It adopts the world's advanced full-wound welding production process. Each intersection is connected by welding, with a solid structure and good mechanical properties. The V-shaped profile avoids clogging while keeping the water flowing. The continuous gap has a larger water-passing area, and at the same time reduces the infiltration rate of groundwater, prevents sand from entering the pipe under large water pressure, and has better sand filtration. The gap can also vary according to different geology.
1. The application of trapezoidal wire forms a V-shaped opening between the Schroder screen gaps. This design form works more efficiently than other forms of products, ensuring the smoothness of water filtration.
2. The continuous winding of the trapezoidal wire forms a continuous high-density uniform gap on the supporting wires arranged in a circular pattern, which ensures the opening area and non-blocking of the Schroeder screen, and avoids the high-density accumulation of sediments. Productivity and extended filter life are guaranteed.
3. The winding wire and all supporting wires are connected by electric welding, which is durable and has a longer working life cycle.
4. The longitudinal arrangement of the support wires and the continuous slot form of the screen are designed according to the actual needs, so that the product has higher compressive performance.
How to choose:
In order to achieve the best filtration and use effect, and at the same time meet the requirements of all users in the industrial industry to save water, electricity and labor, please consult the dealer. Authorized agents and distributors have received professional technical training from experts. They will make the best choice for you with their professional knowledge, rich market experience, and rigorous scientific attitude. Generally there are the following points:
1. Treated water volume
2. Pipeline pressure of the system, selection of wire gauge in Schroeder screen
3. The filtering accuracy required by the user, that is, the filtering gap
4. Filter the concentration of suspended solids in impurities
5. The relevant physical and chemical properties of the filter medium to select the product material
6. The length and diameter of the Schroeder screen equipped in the filter equipment
microns | 10 | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 150 | 200 | 400 | 800 | 1500 | 3000 |
mesh | 1500 | 650 | 550 | 400 | 300 | 200 | 150 | 120 | 100 | 80 | 40 | 20 | 10 | 5 |
mm | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.08 | 0.1 | 0.12 | 0.15 | 0.2 | 0.4 | 0.8 | 1.5 | 3.0 |
Delivery details :
1. For small quantity, shipped by courier.Tracking number will be emailed to you after order has been shipped.
2. For large quantity, shipped by air or by sea. (According to your request)
Will send the documents to you timely.
