304 Stainless Steel Water ISO Well Screen Filter Mesh

China Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. certification
China Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. certification
"My project is in urgent need of the Water Wire Screen, you completed my order within the required time. It really helped me a lot. My Reliable Suppliers ! "

—— Mohamed

" Your Wedge Wire Screen is reasonable in price and excellent in quality. When I do my next project, I'll be sure to contact you again."

—— Mr.Thien

"This is my first time to contact with Wire Wrapped Screen, There were many things I didn't understand. You explained to me patiently, your service was excellent."

—— Mr.Alan

I'm Online Chat Now

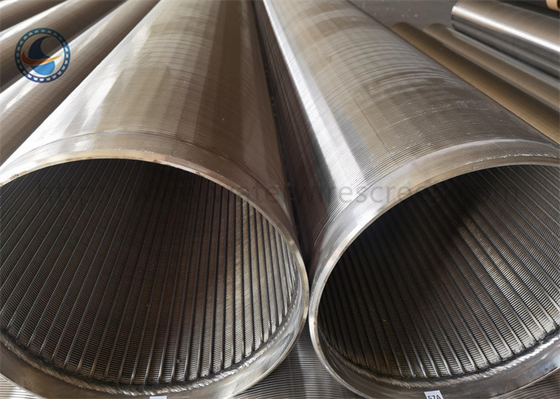

304 Stainless Steel Water ISO Well Screen Filter Mesh

304 Stainless Steel Water ISO Well Screen Filter Mesh
304 Stainless Steel Water ISO Well Screen Filter Mesh 304 Stainless Steel Water ISO Well Screen Filter Mesh

Large Image :  304 Stainless Steel Water ISO Well Screen Filter Mesh

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO,CIQ,CE, FORM E etc
Model Number: HY005
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Package: Woden Box, Container Slot Size: 0.7mm
Material: Stainless Steel 304 Diameter: 8"
Length: 2900mm Wire: 2*3.5mm,2.2*3.5mm
End Connection: Welded Rings/ Thread Couplings Support Rod: 3.8mm/4.0mm
High Light:

iso well screen

,

304 stainless steel well screen

,

304 stainless steel well screen pipe

Factory stainless steel water well screen filter mesh

Product Description:



water well screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2. Low cost operation screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.

3. Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.

4. Extend the life span of wells

Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.





Regular Specification:



SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59



Application


Wedge wire screen is widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.

Features
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.



Features


1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.



OEM service:



We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
