Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering

Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering
Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering

Large Image :  Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering

Product Details:
Place of Origin: Hengshui City,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY080502
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wooden boxes
Delivery Time: 5 days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Johnson Wedge Wire Flat Screen Material: Stainless Steel 321
Wire Size: 2*3.5mm Vee Wire Support Rod: 3*4.6mm
Size: ø1200mm Slot: 1.2mm
Type: Flat Screen Opea Area: 28.57%
Width: Customize Size Length: Customize Length
Application: Mining,oil,fertilizer Feature: Easy Leakage,non-clogging,corrosion Resistance
Business Type: Manufacturer Oem: YES
High Light:

ss 321 johnson wedge wire screen

,

flat johnson wedge wire screen

,

petrochemical engineering wedge wire screen panels

SS 321 Johnson Wedge Wire Flat Screen For Petrochemical Engineering



Johnson Wedge Wire Flat Screen have smooth surface and small slot sizes, which can ensure the accurate efficiency. Additional, the stainless steel material is corrosion, rust, chemical resistance, which can make wedge wire screen panels durable and long lifespan.



Johnson Wedge Wire Flat Screen, also called wedge wire flat screens, wedge wire panels.



Johnson Wedge Wire Flat Screen can be fabricated with very small wires and rods for critical fine-screening operations, or with much larger wires and rods for heavy-duty operations.


The slot size is determined according to the customer’s needs and application.
Currently used as:


• Filter floors
• Support grids
• Static grids
• Vibrating screens
• Floor grates



Johnson Wedge Wire Flat Screen Common size:



Name:

Johnson flat screen, Wedge wire screen panel, Slotted plate,Wound screen plate.

Material:

Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.

Max Size:

4000×4000 mm

Slot:

From 0.025-100mm

Profile wire type:

Vee wire/ Triangle wire

Support rod type:

Vee wire/ Triangle wire; Round wire; Rectangular wire.

Profile wire:

1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,

2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.



Support rod:



Vee wire:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm

Round wire: ø2.5-6.0mm

Rectangular wire: 2×10mm; 2×12mm; 2×15mm; 2×20mm; 2×30mm; 3×20mm; 3×30mm.

Frame:

With or without frame



Advantages Of Johnson Wedge Wire Flat Screen Panels:



  • Flat surface.

  • Excellent filtering performance.

  • Accurate distance between supporting profile.

  • Welded production process for solid and strong structure.

  • Good mechanical properties.

  • High strength.

  • High load capacity.

  • Corrosion and rust resistance.

  • Temperature resistance.

  • Chemical stability.

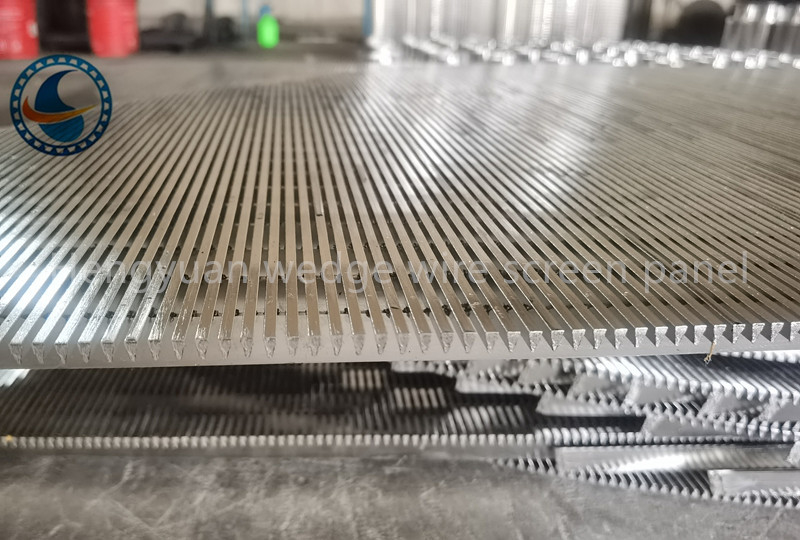

Johnson Wedge Wire Flat Screen Pctures:



Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering 0Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering 1Ss 321 Johnson Wedge Wire Screen Flat For Petrochemical Engineering 2
