Duplex Steel 2507 Wedge Wire Panel Vee Shaped Flat Screen

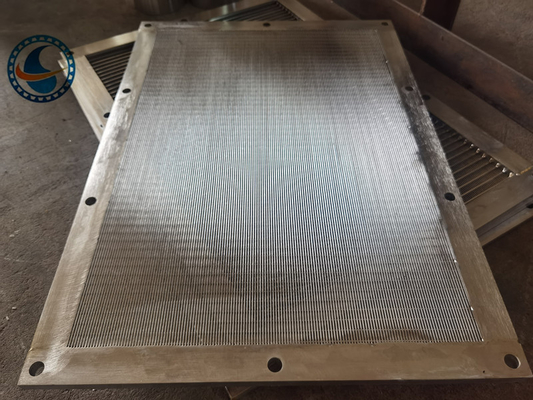

Large Image : Duplex Steel 2507 Wedge Wire Panel Vee Shaped Flat Screen

Product Details:

Place of Origin:	Hengshui City,Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY080504

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Wooden boxes
Delivery Time:	5 days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Vee-Shaped Wedge Wire Flat Screen	Material:	Duplex Steel 2507
Wire Size:	1.5*2mm Vee Wire	Support Rod:	2*3mm
Size:	500*300mm	Slot:	0.5mm
Type:	Flat Screen	Opea Area:	25%
Width:	Customize Size	Length:	Customize Length
Application:	Mining,oil,fertilizer	Feature:	Easy Leakage,non-clogging,corrosion Resistance
Business Type:	Manufacturer	Oem:	YES
Highlight:	duplex steel 2507 wedge wire panel , vee shaped wedge wire panel , duplex 2507 wedge wire screen panels

Duplex Steel 2507 Wedge Wire Panel Vee Shaped Flat Screen

Attribute	Value
Name	Vee-Shaped Wedge Wire Flat Screen
Material	Duplex steel 2507
Wire size	1.5*2mm Vee wire
Support rod	2*3mm
Size	500*300mm
Slot	0.5mm
Type	Flat screen
Open area	25%
Width	Customize Size
Length	Customize Length
Application	mining, oil, fertilizer
Feature	easy leakage, non-clogging, corrosion resistance
Business type	Manufacturer
OEM	YES

Product Description

Vee-Shaped Wedge Wire Flat Screen is a metal mesh structured screen used for screening and filtering. It's profile wire is welded by cold-rolled steel strip wire and it's supporting rod is welded by automatic production equipment. The dimensions, wire diameter, slot and frame structure can be customized.

Material Options

Stainless Steel SS304, 304L, 316, 316L, 2205 Austenitic stainless steel, Hastelloy, etc.

Applications

It is widely applied in the screening, filtering, dehydration and slime separation of various industries:

Chemical
Petrochemical
Environmental protection
Water treatment
Paper making
Water filtration
Starch processing
Sugar refining
Coal washing
Solid-liquid separation
Ore screening

Specifications

Name: Vee-Shaped Wedge Wire Flat Screen, Johnson flat screen, Wedge wire screen panel

Material: Stainless steel 201, 304, 316L, 904L, Duplex steel 2205, 2507, C276 etc.

Max Size: 4000×4000 mm

Slot: From 0.025-100mm

Profile wire type: Vee wire/ Triangle wire

Support rod type: Vee wire/ Triangle wire; Round wire; Rectangular wire

Profile wire: 1×2mm, 1.2×2mm, 1.2×2.3mm, 1.5×2mm, 1.5×2.5mm, 2×3mm, 2×3.5mm, 2.2×3.5mm, 3×4.6mm etc.

Support rod: Vee wire: 2×3mm, 3×4.6mm Vee shaped; Also can be round wire, ø3.0-ø6.0mm

Round wire: ø2.5-6.0mm

Rectangular wire: 2×10mm; 2×12mm; 2×15mm; 2×20mm; 2×30mm; 3×20mm; 3×30mm

Frame: With or without frame

Product Images
