Product Details:
Payment & Shipping Terms:
|
| Name: | Rotary Drum Wire Screen | Material: | Stainless Steel 304 |
|---|---|---|---|
| ID: | 450mm | Length: | 980mm |
| Slot Size: | 0.8mm | Wrap Wire: | Sb34 (2.8*5mm) |
| Support Rod: | Q35 (3*5mm) | Ends: | Open Ends |
| Usage: | FIlter/back Wash | Filter Type: | From Inside To Outside |
| High Light: | rotary drum wedge wire screen pipe,904l wedge wire screen pipe,904l cylindrical wedge wire screens |
||

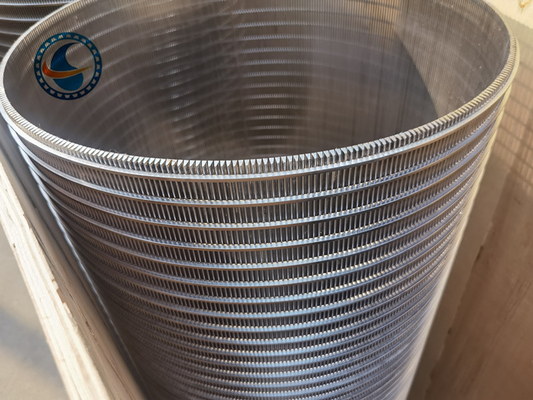

Rotary drum wire screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel V shaped wires and support rods. As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure.
The end of rotary drum wire screen is welded flanges or welded rings for easy installation.
The slot sizes and structures may varies according to different materials and working conditions.
|
Name: Wedge Wire Screen,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen filter,Wedge wire screen pipe, Rotary filter drum. |
| Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc. |
| Diameter: From 25-1300mm |
| Slot: From 0.025-100mm |
| Length: From 100-6000mm |
| Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc. |
| Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm |
| Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc. |
|
Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc. |
Filter from inside to outside
1. The inner wire is wound and the slot is circumferential, and the outer support bar is vertical
2. The inner winding and the slit are vertical, and the outer support bar is circumferential
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
