Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash

Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash
Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash

Large Image :  Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: ISO, SGS, CIQ,,CCPIT,CO,FORM E
Model Number: HY102502
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: USD 30-100 per Meter
Packaging Details: Plastic film
Delivery Time: 7-15 work days
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 1500 Meters Per Week
Detailed Product Description
Name: Backwash Wedge Wire Screen Filter Material: Stainless Steel 304
ID: 400mm Length: 800mm
Slot Size: 0.8mm Wrap Wire: 2*3.5mm
Support Rod Size: 3*4.6mm Distance Of Rods: 20mm
Usage: FIlter/back Wash Filter Type: From Inside To Outside
High Light:

backwash welded wedge wire screen filter

,

ss 304 wedge wire screen filter

,

800 micron welded wedge wire screen

SS 304 Backwash Wedge Wire Screen Filter

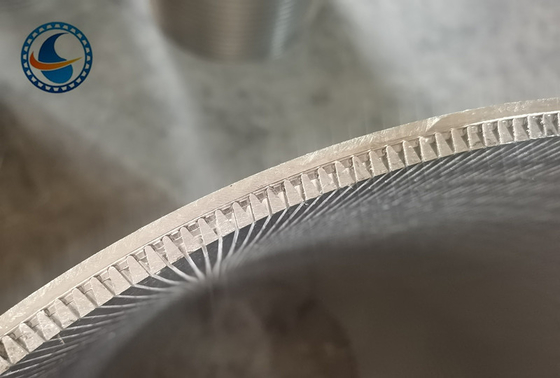

The Backwash Wedge Wire Screen Filter for kitchen filter cartridge is welded by V-shaped wedge wire and support rod. Each winding wire will directly form a fixed gap through the CNC lathe, and the size of the gap can be changed according to the actual use. The opening of the gap is V-shaped, with a large opening at one end and a small opening at the other, which can better filter and backwash, and prolong the service time of the filter tube. CNC lathes can ensure that the gaps are evenly distributed. The filtration method is from the inside to the outside, and is used for water treatment equipment, environmental protection, seawater desalination into industrial water and domestic water, tap water treatment, water softening treatment, petrochemical industry, terminal filtration, etc.



Backwash Wedge Wire Screen Filter Information:



Name: Wedge Wire Screen,Johnson screen,Water wire screen,Water well screen, Wire warp screen,Screen tube,Slotted tube,Wound screen,Continuous slot screen, Wedge wire screen pipe, Rotary filter drum.

Material: Stainless steel 201,304,316L,904L,Duplex steel 2205,2507, C276 etc.
Diameter: From 25-1300mm
Slot: From 0.025-100mm
Length: From 100-6000mm
Wrap wire:1×2mm,1.2×2mm,1.2×2.3mm,1.5×2mm,1.5×2.5mm,2×3mm,2×3.5mm,2.2×3.5mm,3×4.6mm etc.
Support rod:2×3mm,3×4.6mm Vee shaped; Alao can be round wire, ø3.0-ø6.0mm
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange ,Closed up etc.

Use:Water Well,Waste Water Treatment,Water supply systems,Coal & Mine,Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.



Backwash Wedge Wire Screen Filter Working principle:



The drum rotary screen is installed on the roller screen machine. Drive the internal blades by motor to compress the filtration subjects and separate the particles and liquid with rotary drum wire screen (wedge wire screen).



Backwash Wedge Wire Screen Filter Advantages:



  • Continuous slot openings significantly increase the open area and filtration efficiency.
  • V-shaped wire structures reduces clogging and ensures an uninterrupted flowing and working.
  • Supply back washing performance for high working efficiency.
  • Reinforced rods can bear high pressure during high speed rotary working condition.
  • Stainless steel material reduces corrosion and rust and make it durable and reliable.
  • Flange or metal ring ends make them easy to install onto the
  • It is features smooth surface and high filtering efficiency as well as self-cleaning and clogging resistance.

Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash 0Welded Ss 304 Wedge Wire Screen Filter 800 Micron Slot Opening Backwash 1
