Product Details:
Payment & Shipping Terms:
|
| Name: | Wedge Wire Screen | Material: | Stainless Steel 304 |
|---|---|---|---|
| ID: | 250mm | Length: | 750mm |
| Slot: | 0.05mm | Wire Size: | 1*2mm Vee Wire |
| Support Rod: | 2*3mm Vee Wire | Distance Of Rods: | 10mm |
| Filter Type: | From Inside To Outside | Surface: | Acid Washing |
| High Light: | Industrial Filtration Wedge Wire Screen,Continuous Slot Wedge Wire Screen,Continuous Slot profile wire screen |
||

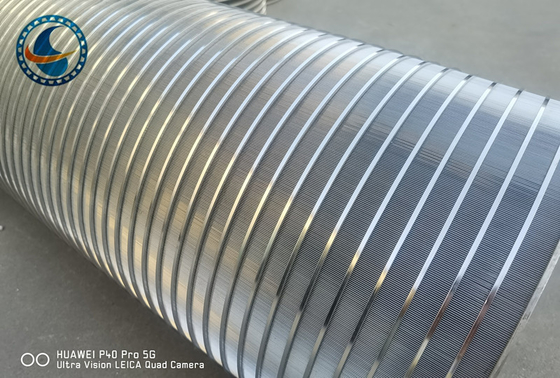

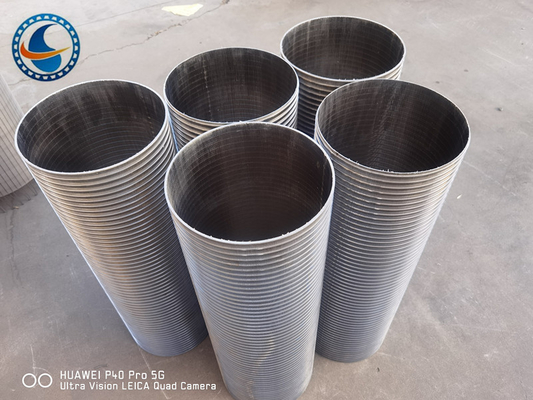

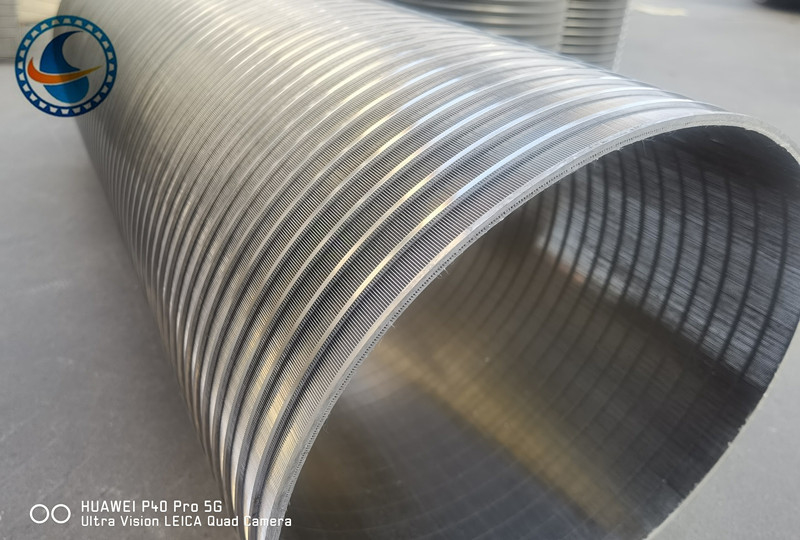

Continuous Slot Wedge Wire Screen, also called Johnson wedge wire screen.
It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
The reverse wedge wire screen is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.
Continuous Slot Wedge Wire Screen has various different types, according to the different standard, here are the detailed introduction of the wedge wire screen tube, just refer to them and know more about the round slot tube and get a reference for choice.
According to the surface of continuous slot wedge wire screen,There are two types of reverse rolled wedge wire screen tube seen from the surface.
One is the normal types, which has continuous and regular angles on the edge. It is economical, which is suitable for the applications where the accuracy is not very strict.
The other type is perfect round type. It is produced by the strict standard, which has better filtering accuracy than the common type. Additional, the perfect round type can be used in the most precise machines and complete the arduous filtering task.
|
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
Type of end connection |
|
29,38,57,63,76,89,108, 150,168,320,600 etc |
500,1000,2000 etc
|
0.05,0.1,0.25,0.5,1.0 etc |
Welded rings, male/female threaded coupling, flange,closed up and so on |
|
Explanation |
Besides above of the specification screen pipe, we also can act according to the customer’s request. Diameter: ø29mm-ø1300mm. The length from the 100mm-6000mm. |
||
