Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel/ LCG | Diameter: | 219 |
|---|---|---|---|
| Slot: | 1.5mm | Unit Length: | 2.9m Or 5.8m |
| Wire Size: | 93# 118# | Support Rod Size: | ø3.8mm Round Wire |
| End Connection: | Welded Rings/thread Couplings/flange | Technique: | Point Welding |
| Application:: | Water Filtration | Package: | Plastic Film |
| High Light: | Point Welding Wire Wrapped Screen,1.5mm wire wrapped well screen,LCG wire wrapped well screen |
||

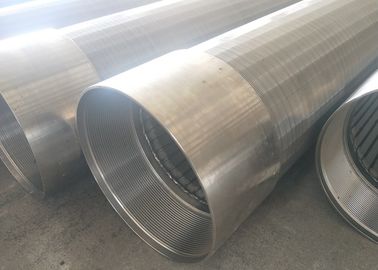

Profilte Wire Wrapped Screen Wound Screen Well Screen For Water and Oil Filtration is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded.
The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well
| Surface profiles | Support profiles | Min.diam. in mm | Min. slot width in mm |
| 10S | Q25 | 21 | 0.10 |
| 11S | Q20 or Q25 | 23 | 0.030 |
| 12S | 22S | 30 | 0.050 |
| 12S | Q25 | 23 | 0.030 |
| 12S | Q35 | 30 | 0.050 |
| 18S | 22S or Q35 | 30 | 0.050 |
| 18S | Q25 | 25 | 0.030 |
| 18S | D45 | 300 | 0.20 |
| 18S | 10x3 | 300 | 0.20 |
| 22S | 22S or Q35 | 45 | 0.10 |
| 22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 28S | Q35 | 215 | 0.20 |
| 28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
| 34S | Q35 | 300 | 0.20 |
| 34S | D45 | 300 | 0.20 |
| 34S | 10x3 or 25x3 | 300 | 0.20 |
| 42S | Q35 or D45 | 300 | 0.20 |
| 42S | 10x3 or 25x3 | 300 | 0.20 |
Remarks:
1. Make tubes with different material according to user requirements.
2. Slot should be bigger than 0.025mm and less that 3000mm long.
Application Of Downhole Slotted Tube For Water Filtration
This Downhole Slotted Tube is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum production.
| Material | Low carbon galvanized, Also can be make stainless steel or other material | ||||||||
| Outer Diameter | 6-5/8", Also can make other size | ||||||||
| Inner Diameter | 152mm, Also can make other size | ||||||||
| Length | 2.9m or 5.8m in usual, Also can make other size according to your request | ||||||||
| Slot | 0.5mm,0.63mm,0.75mm,1.0mm in usual, also achieved upon request. | ||||||||
| Wedge Wire size | Width(mm): 2.0, 2.2, 3 .0, 3.2 etc. Height(mm): 3.5, 4.6, 5.0, 6.0 etc. |
||||||||
| Support Rod size | ø3.0-5.0mm round wire, Also can be Vee shaped Wire | ||||||||
| End connection | Welded rings, Also can be Flange, closed, male/female threaded etc | ||||||||
This is the normal sizes we make, We can make other size according to your drawing !
Please feel free to contact me if you have any enquiry.
