6-5/8" Low Carbon Galvanized Johnson Wire Screen With Customizable Sample

"My project is in urgent need of the Water Wire Screen, you completed my order within the required time. It really helped me a lot. My Reliable Suppliers ! "

—— Mohamed

" Your Wedge Wire Screen is reasonable in price and excellent in quality. When I do my next project, I'll be sure to contact you again."

—— Mr.Thien

"This is my first time to contact with Wire Wrapped Screen, There were many things I didn't understand. You explained to me patiently, your service was excellent."

—— Mr.Alan

I'm Online Chat Now

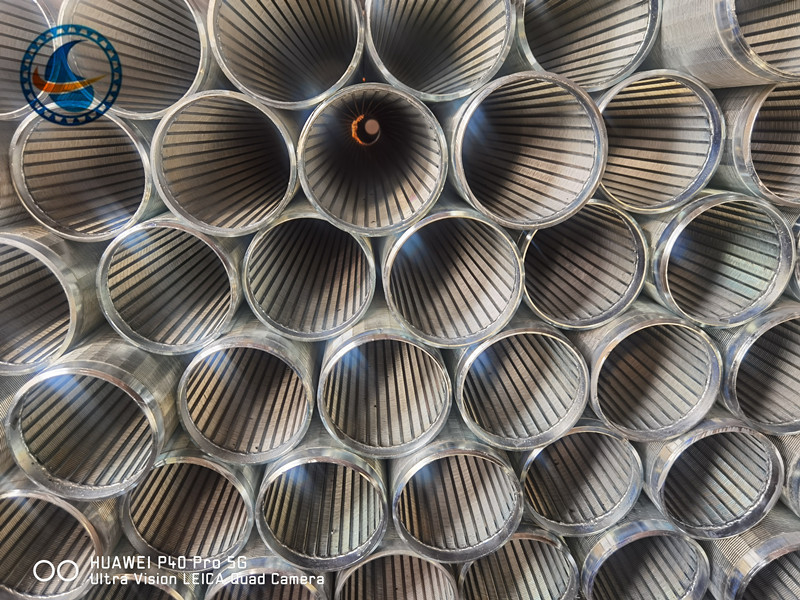

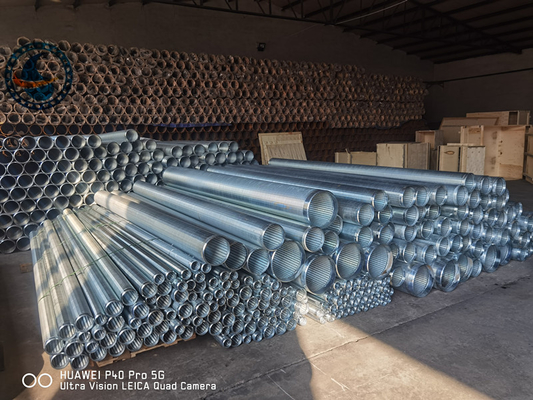

6-5/8" Low Carbon Galvanized Johnson Wire Screen With Customizable Sample

6-5/8" Low Carbon Galvanized Johnson Wire Screen With Customizable Sample

Large Image :  6-5/8" Low Carbon Galvanized Johnson Wire Screen With Customizable Sample

Product Details:
Place of Origin: Hebei
Brand Name: Hengyuan
Certification: ISO9001
Model Number: HY030302
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: according to the enquiry
Packaging Details: wooden box, container
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1000 meters/ week
Detailed Product Description
Name: Johnson Wire Screen Material: Low Carbon Galvanized
OD: 168mm Length: 2.9m
Slot: 1.0mm Wire: 2.2*3.5mm
Support Rod: 3.8mm Round Wire Ends: Welded Rings
Sample: Yes And Can Be Customized Use: In Water Wells For Sand Control
Highlight:

6-5/8" johnson wire screen

,

Low Carbon Galvanized johnson wire screen

,

Non Magnetic johnson wedge wire screen

6-5/8" Low Carbon Galvanized Johnson Wire Screen With Customizable Sample
Product Specifications
Name Johnson wire screen
Material Low carbon galvanized
OD 168mm
Length 2.9m
Slot 1.0mm
Wire 2.2*3.5mm
Support rod 3.8mm round wire
Ends Welded rings
Sample Yes And Can Be Customized
Use In water wells for sand control
Product Overview

Johnson Wire Screen is a highly versatile and durable wire screen product commonly used in water well drilling, oil and gas extraction, filtration, and architectural applications. Made from high-quality materials, this product offers exceptional strength and corrosion resistance for demanding industrial applications.

Key Features
  • V-shaped wire design for superior flow and filtration
  • Available in welding ring or thread coupling joints
  • Customizable width up to 2 meters
  • Precise slot design for efficient filtration
  • Corrosion-resistant low carbon galvanized material
  • Suitable for small orders and custom specifications
Technical Parameters
Parameter Value
Usage Beer Treatment, Water Filtration
Outer Diameter 25.4-1000mm
Application Water Well Screens, Oil Well Screens, Filter Elements, Architectural Screens
Joint Options Welding Ring/Thread Couplings
Wire Type V Wire
Available Grades 304, 201, 316L, 321, 2205, 2507
Filter Rating Up to 99%
Wire Diameter 1.0mm
Customization Options

Our Johnson Wire Screens can be customized to meet your specific requirements:

  • Brand Name: Hengyuan
  • Model Number: HY0303
  • Minimum Order Quantity: 1 meter
  • Delivery Time: 5-8 work days
  • Supply Ability: 1000 meters/week
  • Packaging: Wooden box, container

Specialized for liquid filtration with efficient filtering performance, our screens feature a 1.0mm slot design that effectively removes unwanted particles while maintaining optimal flow rates.
