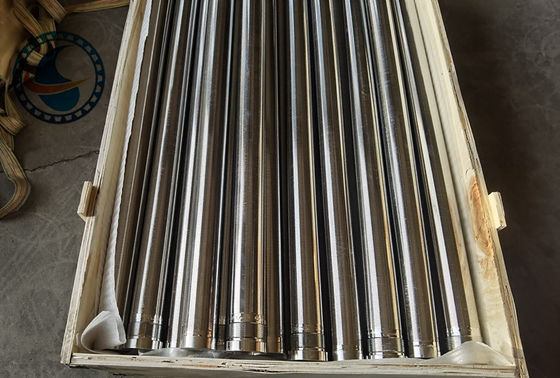

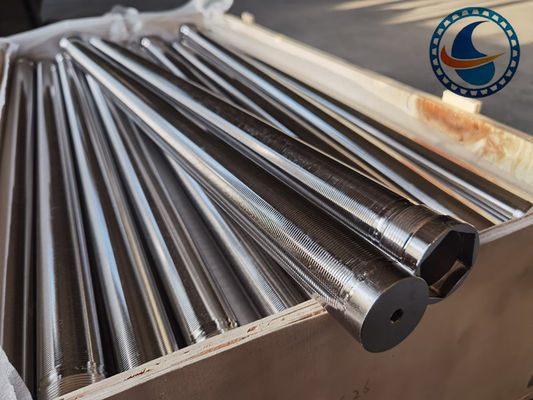

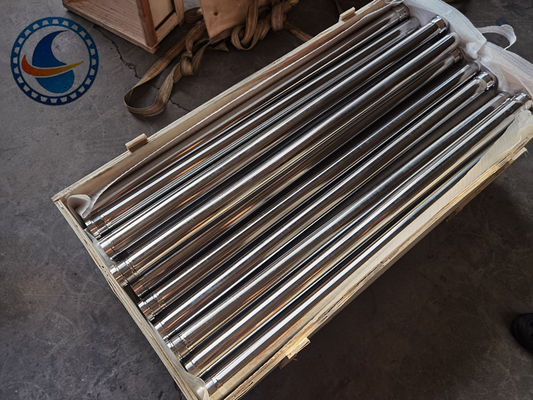

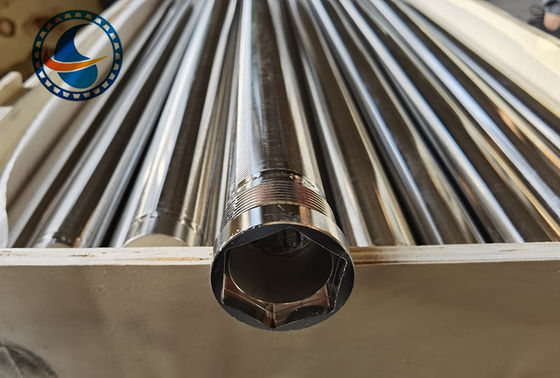

Customizable 0.25mm Slot Size Wedge Wire Heel Guard Screens Stainless Steel 316L

Large Image : Customizable 0.25mm Slot Size Wedge Wire Heel Guard Screens Stainless Steel 316L

Product Details:

Place of Origin:	Hengshui City,Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO,CIQ,CE, FORM E etc
Model Number:	250513002

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Wedge Wire Heel Guard Screens	Material:	Stainless Steel 316L
Diameter:	38mm	Length:	400mm
Slot Size:	0.25mm	Wire:	1.5*2mm
Support Rod:	2*3mm Etc	Package:	Wooden Box
End Connection:	DN25 Male Threaded,	Hole Shape:	Vee-shaped
Highlight:	Customizable Wedge Wire Heel Guard Screens , Wedge Wire Heel Guard Screens , 316L Wedge Wire Heel Guard Screens

SS 316L Wedge Wire Heel Guard Screens

Wedge Wire Heel Guard Screens Characteristics:

1. The application of Wedge Wire Heel Guard Screens, so that the schroeder sieve tube gap between the formation of v-shaped opening. The design works more efficiently than other products and ensures smooth water filtration.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire in a circular arrangement, ensuring the opening area of schroeder sieve tube and no obstruction, and avoiding the high-density accumulation of sediment, providing a guarantee to improve the production efficiency and prolong the service life of the filter.

3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.

4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.

Wound Screen Specification:

Name	Wedge Wire Heel Guard Screens
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire	1.0 2.0 mm 1.52.0mm 1.52.5mm 23mm 2.33.5mm 2.24mm 2.24.5mm 34mm 3*4.6mm etc
Support Rods	23mm 34mm 34.6mm 35mm 36mm 47mm
Round	From 2.5mm to 6.0mm
Slot Size	0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meter
Pipe diameter	25mm to 1300mm
Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.

Customizable 0.25mm Slot Size Wedge Wire Heel Guard Screens Stainless Steel 316L 0
