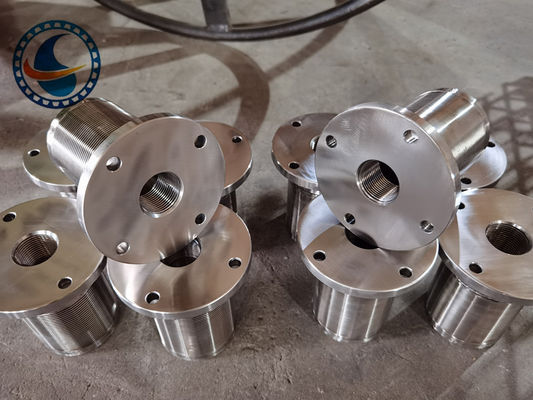

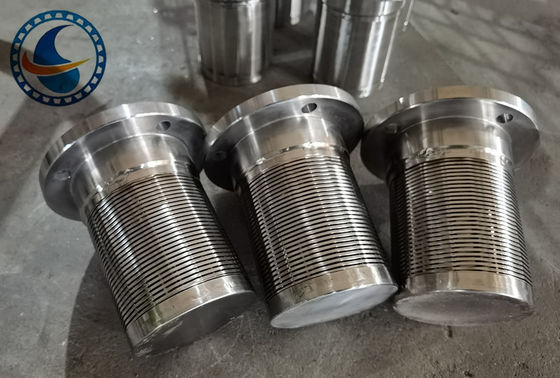

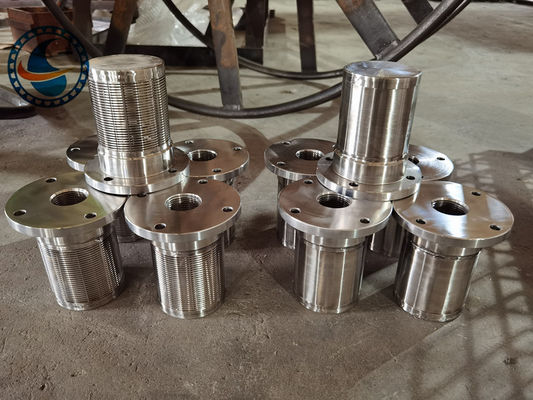

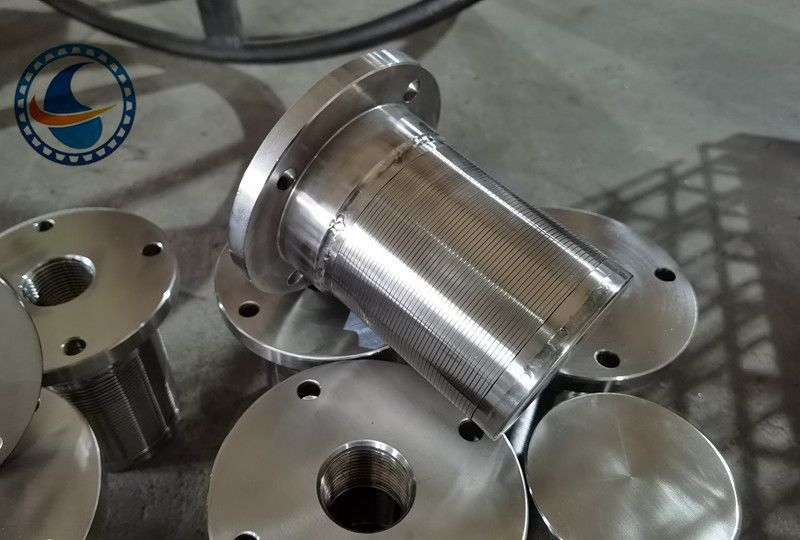

End Connection Stainless Steel 304 Wedge Vee Wire Screen With Vee Shaped Hole

Large Image : End Connection Stainless Steel 304 Wedge Vee Wire Screen With Vee Shaped Hole

Product Details:

Place of Origin:	Hengshui City,Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO,CIQ,CE, FORM E etc
Model Number:	250513005

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Name:	Wedge Vee Wire Screen	Material:	Stainless Steel 304
Diameter:	73mm	Length:	300mm
Slot Size:	0.2mm	Wire:	1.5*2mm
Support Rod:	2*3mm Etc	Package:	Wooden Box
End Connection:	DN25 Male Threaded,	Hole Shape:	Vee-shaped
Highlight:	End Connection Wedge Vee Wire Screen , Steel 304 Wedge Vee Wire Screen , Stainless 304 Wedge Vee Wire Screen

Stainless Steel 304 Wedge Vee Wire Screen

Stainless Steel Wedge Vee Wire Screen Characteristics:

1. The application of Stainless Steel Wedge Vee Wire Screen, so that the schroeder sieve tube gap between the formation of v-shaped opening. The design works more efficiently than other products and ensures smooth water filtration.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the supporting wire in a circular arrangement, ensuring the opening area of schroeder sieve tube and no obstruction, and avoiding the high-density accumulation of sediment, providing a guarantee to improve the production efficiency and prolong the service life of the filter.

3. The winding wire and all supporting wires are connected by electric welding, durable, longer working life cycle.

4. Longitudinal arrangement of supporting wire and continuous gap form of screen tube designed according to actual demand make the product have higher compression performance.

Stainless Steel Wedge Vee Wire Screen Specification:

Name	Stainless Steel Wedge Vee Wire Screen
Material	Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire	1.0 2.0 mm 1.52.0mm 1.52.5mm 23mm 2.33.5mm 2.24mm 2.24.5mm 34mm 3*4.6mm etc
Support Rods	23mm 34mm 34.6mm 35mm 36mm 47mm
Round	From 2.5mm to 6.0mm
Slot Size	0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length	Max 6 meter
Pipe diameter	25mm to 1300mm
Screen Ends	Plain Beveled ends, male/female threaded, flange or close up.

End Connection Stainless Steel 304 Wedge Vee Wire Screen With Vee Shaped Hole 0
