| Material: | Stainless Steel | Grade: | 201,205,304,304L,316L Etc. |
|---|---|---|---|
| Slot Size: | 0.5mm, 0.63mm, 0.75mm, 1.0mm Etc. | Diameter: | 8-5/8" (OD 219.1mm) |
| Length: | 2.9m Or 5.8m To Fit Container | Usage: | In Water Well For Sand Control |
| End Connection: | Male/female Threaded OR Welded Rings | Wire Size: | 2*3.5mm, 3*4.6mm,3.2*6mm Etc. |
| High Light: | water well sand screen,wire wrapped pipe |
||

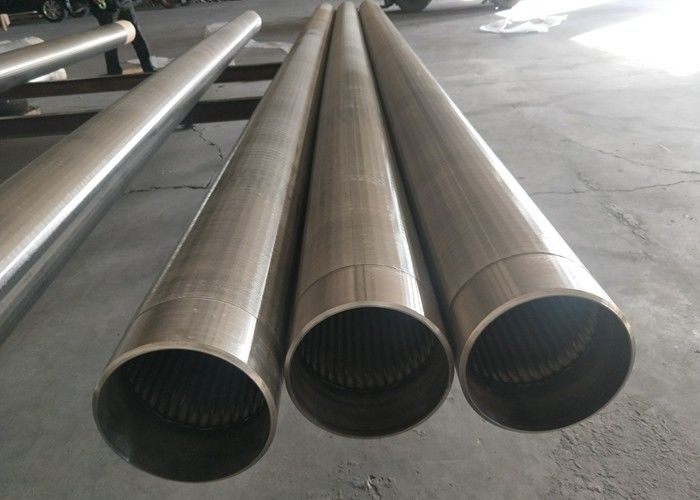

China Vee Shaped Wire Wrapped Screen For Municipal Water Supply System
Description:
Wire Wrap Screen is manufactured with Vee-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded.
The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Vee Shaped Wire Wraped Screen Pipe, also be named Wire wrapped screen pipe, Johnson Screen,,Welded wedge wire screen, Continuous slot pre-pack, Water filter, Screen cylinders, Stainless steel slot tube,Strainer pipe, Continuous slot wire wrap well screens, Pipe base well screen
Normal Specification:
| Material | Low carbon steel galvanized Or Stainless steel |
| Grade | Q195, Q235 OR SS205, 304,304L,316L etc. |
| O.D | 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4" etc. |
| Size | 114mm, 168mm, 219mm, 273mm, 325mm etc. |
| Slot size | 0.5mm, 0.63mm, 0.75mm, 1.0 mm, 1.5mm in usual |
| Length | 2.9m , 5.8m in usual to fit container |
| End connection | Welded rings; Male/female threaded, Flange |
| Wire size | #93, #118 etc. |
| Support rod | Round wire ø3.0-6.0mm round wire |
| Wire shape | Vee shape wire |
Application of First choice of industrial Wire Wrap Screen
1. Water well smining & Mineral Processing
2. Municipal water supply, refining & petrochemical
3. Water treatment
4. Architecture and construction, etc.
Regular Specifications:
Material: stainless steel 201, 205, 304, 304L, 316L or low carbon galvanized
O.D.: 4, 6, 8, 10, 12 inch and as request.
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Length: 50mm-6000mm
End Connection: welded rings or thread couplings ( male / female )
Specification of the wrap wire:2*3.5mm, 2.2*3.5mm, 3*4.6mm ,3*5mm, 3*6mm,3*7mm.
Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.
Special specification can be made according to your requirement !
Delivery details :
1. For small quantity, shipped by courier.Tracking number will be emailed to you after order has been shipped.
2. For large quantity, shipped by air or by sea. (According to your request)
Will send the documents to you timely.
