| Features: | Non-clogging ,anti-corrosion | Material: | Stainless Steel Wedge Wire |
|---|---|---|---|
| Technique: | Welding | Application: | Filtration |
| High Light: | water well sand screen,oil well screen |
||

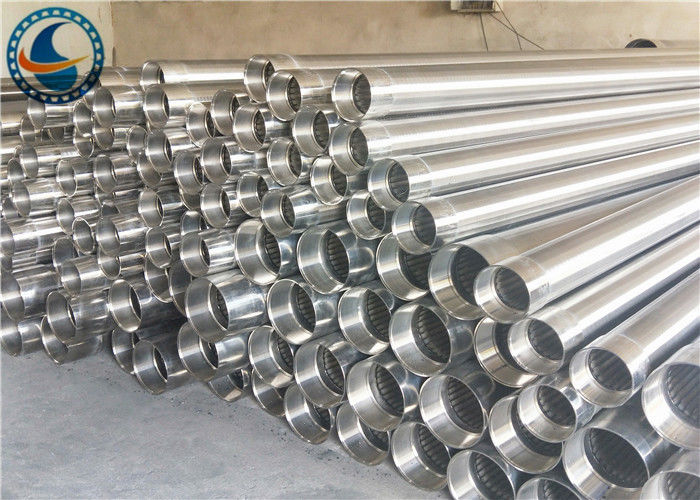

Welding Standard Wire Wrapped Screen / Slot Continuous / Filter Cylinder
Wedge Wire Johnson Screen Filter Usage:
A type of screen used in sand control applications to support the gravel pack. To form the screen, a profiled wire is wrapped and welded in place on a perforated liner. Screens are available in a range of sizes and specifications, including outside diameter, material type and the geometry and dimension of the screen slots. The space between each wire wrap must be small enough to retain the gravel placed behind the screen, yet minimize any restriction to production.
Wedge Wire Johnson Screen Filter Parameter selection table
| Wedge Wire Johnson Screen Filter | ||
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 |
|
| Specification (support rods): | Width(mm): 2.0 3.0 Height(mm): 3.0 4.6 5.0 6.0 7.0 Round: From 2.50mm to 6.0mm |
|
| Note: other wires and rods available upon request | ||
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. | |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) | |
| Length | Upto 4 meters | |
| Diameter | 29-1200mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up. | |
| Other sizes available on request. | ||
|
Advantage
|
Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs |
|
