Anti Wear Rotary Screen Drum / Wedge Wire Cylinder Basket Customization Available

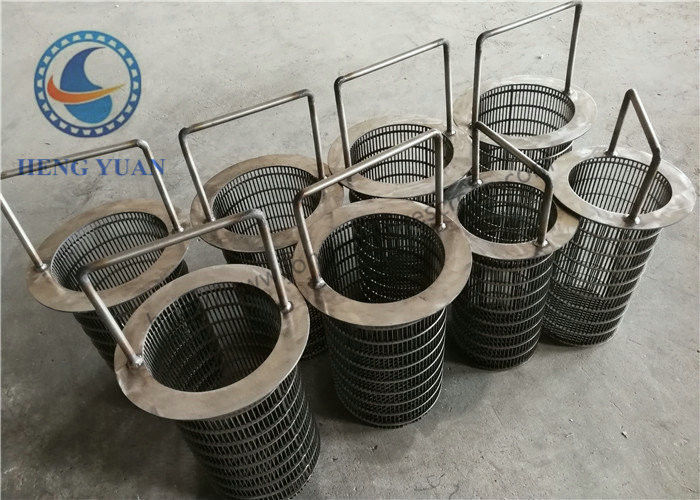

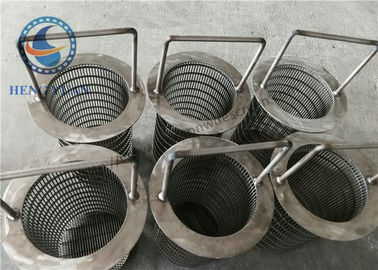

Large Image : Anti Wear Rotary Screen Drum / Wedge Wire Cylinder Basket Customization Available

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY0010

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	according to the specifications
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	1.0 Mm	Diameter:	520 Mm
Length:	600 Mm	Components:	None, As The Customer's Requirement
Package:	Woden Box,Container
Highlight:	rotating drum screen , wire cylinder basket

Anti Wear Rotary Screen Drum / Wedge Wire Cylinder Basket Customization Available

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	1.0 mm
Diameter	520 mm
Length	600 mm
Components	None, as the customer's requirement
Package	Woden box, Container

Product Description

Stainless Steel Rotary Wedge Wire Wound Screen Drum Heat FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding. From inside to outside (FITO), whereas the liquid flows from inside to outside.

It features a v-shaped cross-section of the stainless steel wire welded on framework, with precision filter slots formed between every two adjacent wrap wires. This design facilitates back flush filter residue removal, achieving continuous water supply function.

Specifications

Material	Stainless steel
Grade	316L
I.D	150-1000 mm, 400 MM
Slot Size	0.1 - 30 mm, 0.75 mm
Components	None
Length	300-3000mm, 500 mm
Filter type	From inside to outside
Wire size	2*3.5 mm
Support rod	3*4.6 mm
Wire shape	V shape

Regular Specifications

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside
Slot type: Inside circle wire and slot, inside vertical wire and slot
Other components: Flange, stiffener, lifting handle, and other type components by request

Wire and Rod Sizes

Wire Width (mm)	1.0 \| 1.2 \| 1.5 \| 2.3 \| 3.0
Wire Height (mm)	2.0 \| 2.2 \| 2.5 \| 3.5 \| 4.6
Rod Width (mm)	2.3 \| 2.3 \| 3.0 \| 3.7 \| 3.3
Rod Height (mm)	2.7 \| 3.5 \| 4.6 \| 5.6 \| 6.3
Round Wire Diameter	0.25-0.5m
